VMK-high temperature-model

tmax up to 1800 °C

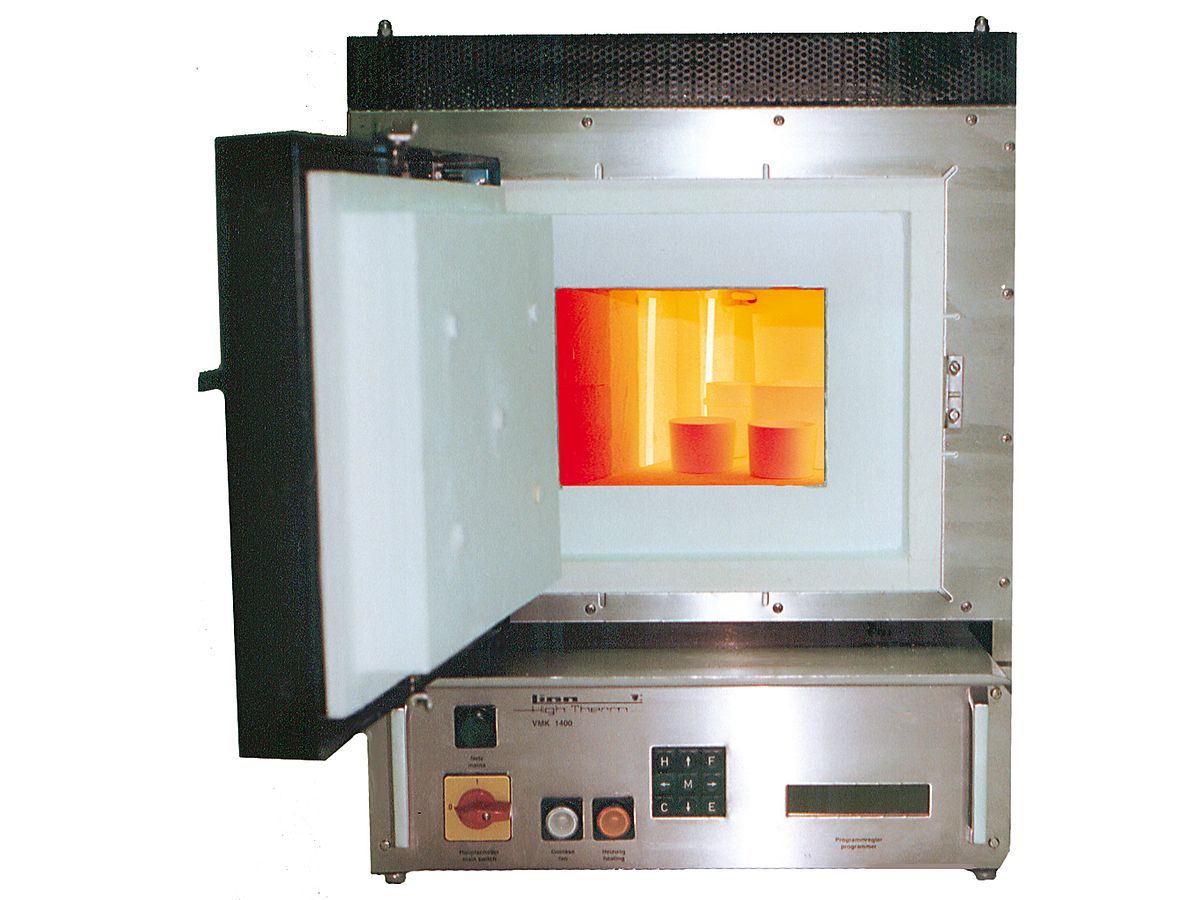

Laboratory chamber furnace, high temperature, PCW insulation, Tmax 1800 °C, 6.9 - 12 l

Applications:

calcination, calibration, debinding, firing, fusion, gemstone heat treatment, melting, oxydation, sample preparation for spectroscopy, sintering, stress-relieving, tempering

The most important characteristics

Furnace for research, laboratory and production
Fiber insulated laboratory furnace
Max. operating temperature up to 1800 °C
Fiber insulated inner housing
Fast heating and cooling cycles
Stainless steel housing
High energy efficiency
High quality – made in Germany
Easy to handle

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options

Temperature controller G800
Serial interface
Furnace exhaust
Safety controller
Thermocouple type S
Controller SE50-Touch
Gas purging device
Gas flushing device
Post combustion
Travelling thermocouple

Product Specifications

Sizes

model	liters	Inside dimensions in mm (wxdxh)	T. max °C	kW
VMK-1400	6,9	170 x 270 x 150	1400	3,5
VMK-1600	6,9	170 x 270 x 150	1600	3,5
VMK-1600-G	12,0	175 x 340 x 200	1600	5,0
VMK-1800	4,0	150 x 240 x 110	1800	4,0
VMK-1800-G	9,0	150 x 330 x 180	1800	5,0

Technical details

Furnace housing

The attractively designed stainless steel furnace housing is equipped with a shelf below the door which also protects the operating elements from thermal and mechanical damage. Exhaust connecting piece made of stainless steel is installed at the rear wall.

Insulation

The furnace chamber is vacuum formed in one ceramic fiber block with additional aluminum oxide fiber boards. The use of this lightweight, low heat storage material, permits extremely short heating up - and cooling down times.

Heating

The furnace is heated by exchangeable Kanthal-APM-Meander heating elements. Power is regulated by a thyristor power unit with phase control operation and a transformer. The heating element connections are led out at the furnace ceiling. At the side, installed from back, a thermocouple type S measures the temperature.

Control unit

The control system is installed on the bottom side of the furnace (below the deposit) and as a standard it is equipped with the following instruments:

Temperature controller G800
2 or 3 setpoint controller with PID behaviour
Max. 4 programs with max. 16 segments / steps
Display of actual & set value
Self-optimization prevents overshooting (pre-adjustment or automatic self-adjustment)
Separation of control and configuration level (prevents undesired changes)
4 selectable parameter sets
Alarm signal in case of thermocouple fracture
Serial interface RS 485 as option (not possible to install afterwards)
Safety controller
Thyristor power unit with phase angle control
Pre-transformer
Elapsed hour meter for pre-selection of the switching on – and switching off point
Cooling fan for control system

Product properties

Product Line:	type series
Operation Mode:	Batch
Construction Types:	Furnace
Designs:	Chamber furnace, Laboratory furnace
Temperature Max (°C):	1800
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air, Controlled gas atmosphere
Applications:	calcination, calibration, debinding, firing, fusion, gemstone heat treatment, melting, oxydation, sample preparation for spectroscopy, sintering, stress-relieving, tempering
