KK-model

tmax up to 1340 °C

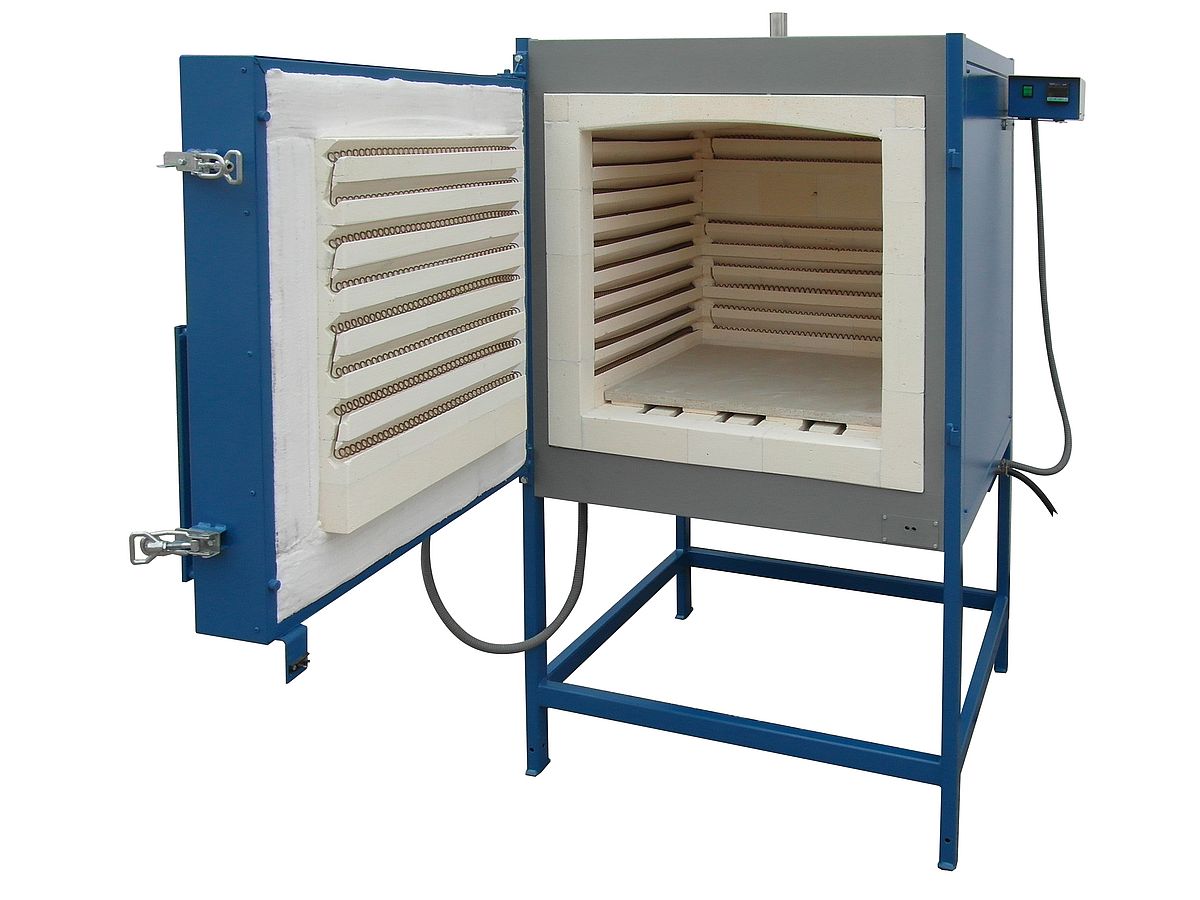

Chamber kiln, brick and ASW insulation, Tmax 1340 °C, 55 - 2000 l

Applications:

ashing, calcination, debinding, firing, fusion, oxydation, pre-heating, shrink fitting, stress-relieving

The most important characteristics

Electrically heated chamber furnace
Max. operating temperature 1300°C respectively 1340 °C
Lightweight steel construction
Protection against corrosion
2/4 wall heating, additional door heating with bigger sizes possible
Tough design
Light weight
High quality – made in Germany
Easy to handle

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options

Serial interface
Separately controlled heating

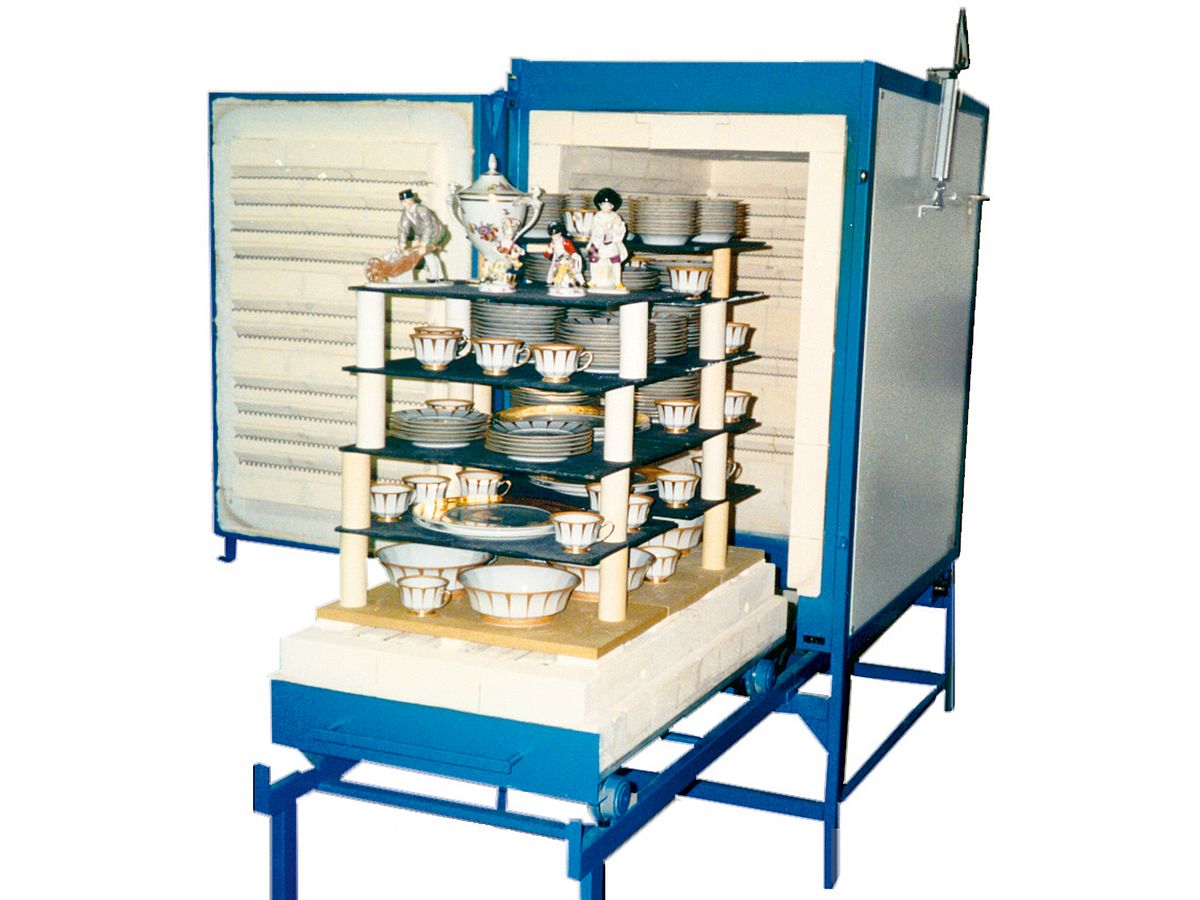

Movable bottom
Useful room temperature for short time 1400°C for KK-750 and bigger
1280°C low cost version
Multifunctional unit
Supervision of temperature progress by display recorder
Underframe
Insert plate made of cordierite
Pot support

Product Specifications

Sizes

model	liters	inside dimensions mm (wxdxh)	in °C	heating power kW
KK-55	55	320 x 450 x 380	1300	3,3
KK-80	77	400 x 400 x 480	1340	7,5
KK-120	125	460 x 460 x 590	1340	9,6
KK-170	166	460 x 610 x 590	1340	12,0
KK-220	220	610 x 610 x 590	1340	15,0
KK-260	260	610 x 610 x 700	1340	18,0
KK-350	351	610 x 720 x 800	1340	21,0
KK-500	505	610 x 920 x 900	1340	25,0
KK-750	750	740 x 920 x 1100	1340	48,0
KK-1000	900	850 x 970 x 1090	1340	60,0
KK-2000	1750	850 x 1880 x 1090	1340	100,0

Technical details

Furnace housing

The furnace housing consists of a lightweight steel construction. As protection against corrosion they are coated with a special lacquer. The chosen colors blue/white give a nice appearance to the entire furnace.

Insulation

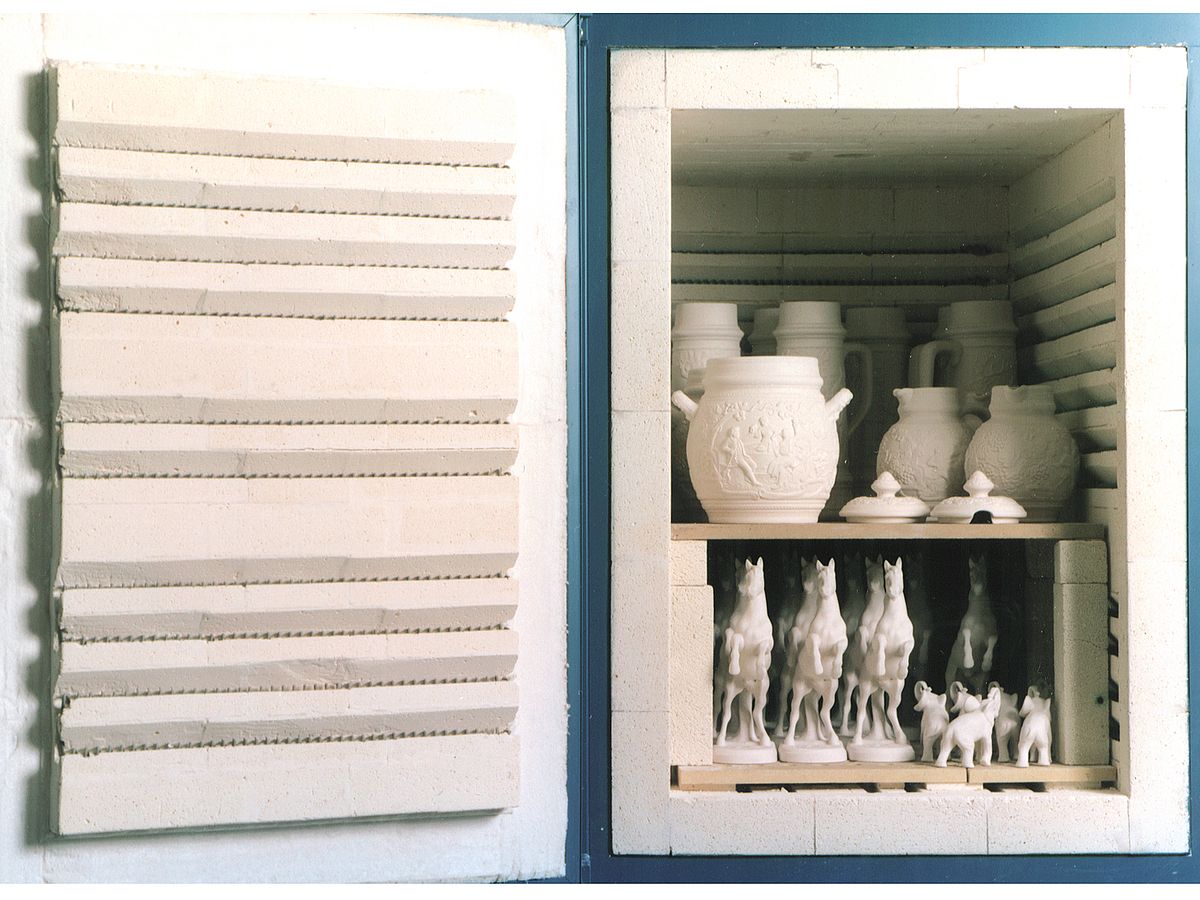

Ceiling, heated side walls, rear wall and bottom are covered with high quality lightweight refractory bricks. By using these bricks the burning goods will not be contaminated by broken insulation material falling down.

The additional heat insulation with calcium silicate boards ensures a high thermal capacity at low energy consumption. The door is lined with fiber modules.

Heating

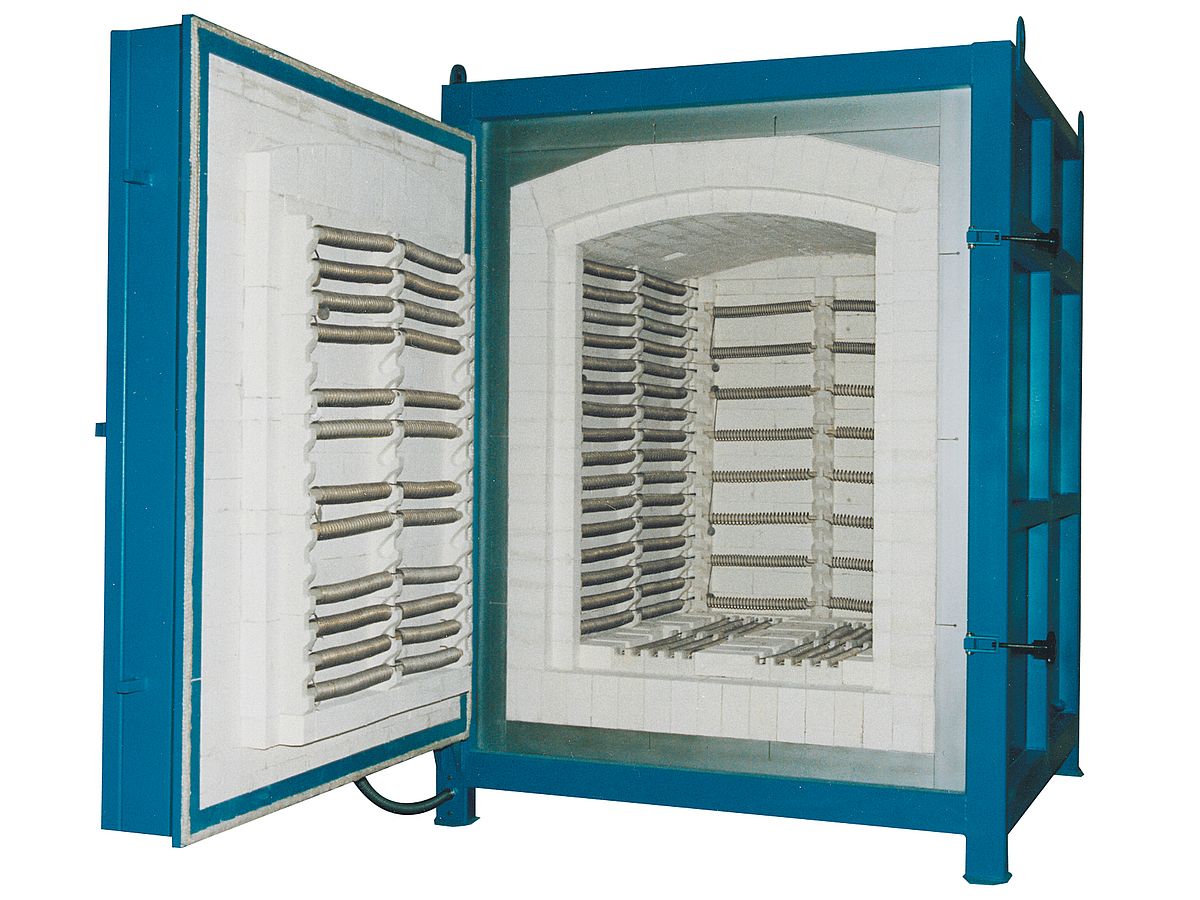

Heating is effected by free radiating Kanthal A1 bzw. APM heating spirals (hair pins) in rills of the bricks of the side walls, the rear side and the bottom. The furnace bottom is covered with a well thermal conductive ceramic plate. For the activation of the waste of the burning materials and the cooling behavior during cooling phase, air channels are installed in the furnace bottom through which fresh air with well chamber distribution will be guided to the top side due to thermal lifting.

Control unit

Connection field and power electronic are tightly installed at the furnace rear side. The controller G800 is placed in a separate housing which is connected to the furnace and is assembled at the side wall of the furnace system:

2 or 3 setpoint controller with PID behaviour
Logic output and continuous output
Max. 4 programs with max. 16 segments / steps programmable
Display of actual and desired value
Self-optimization prevents overshooting
Separation of control and configuration level (prevents undesired changes)
4 switchable parameter sets
Alarm signal in case of thermocouple fracture
Serial interface

A safety switch is installed on the furnace which switches off the heating during opening the door by a constraint disconnection. The furnace is provided with a connection cord.

Product properties

Product Line:	type series
Operation Mode:	Batch
Construction Types:	Furnace
Designs:	Chamber furnace
Temperature Max (°C):	1340
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air
Applications:	ashing, calcination, debinding, firing, fusion, oxydation, pre-heating, shrink fitting, stress-relieving
