The most important characteristics:

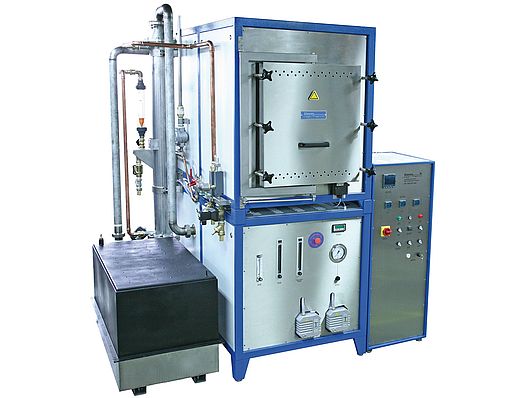

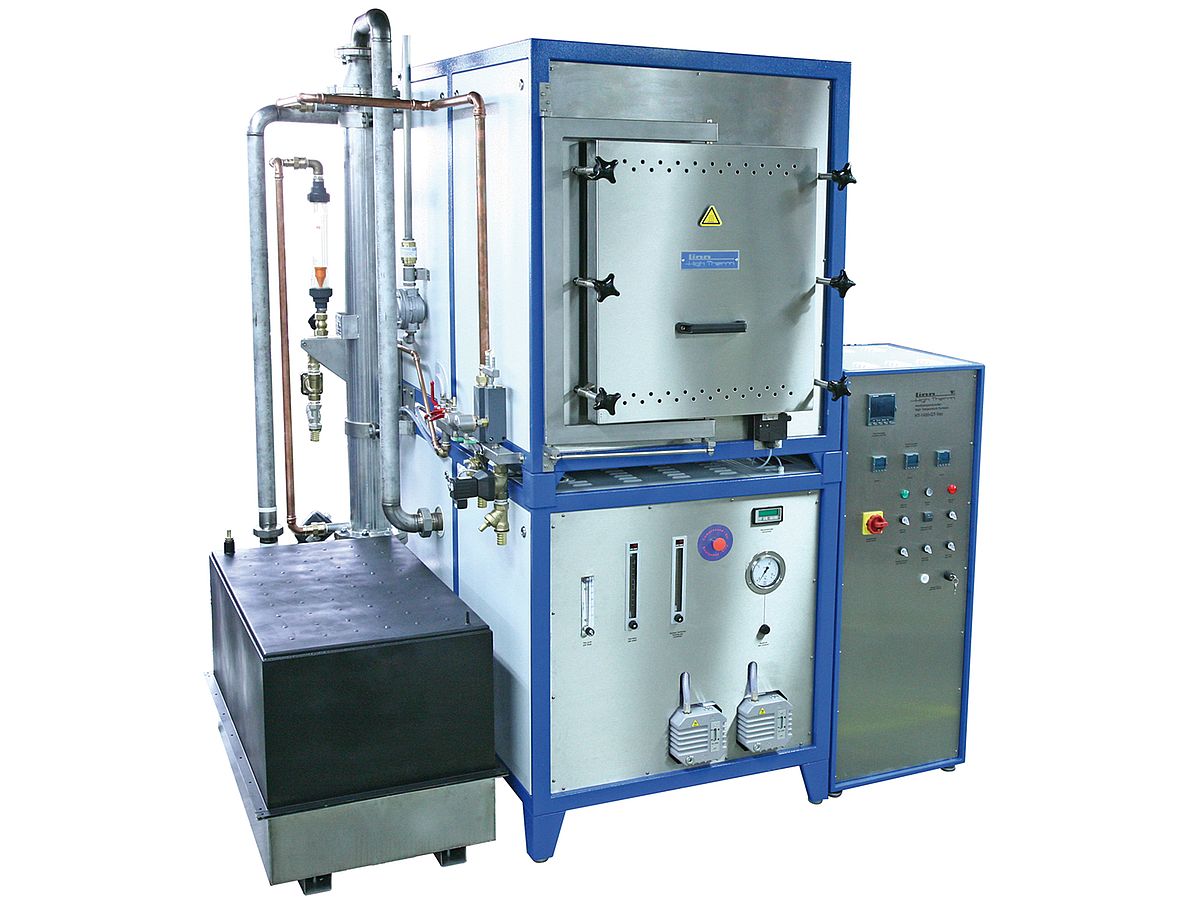

• Electrically heated chamber furnace with Al2O3-PCW and graphite insulation
• 3 heating zones
• Max. Temperature up to 1750 °C
• Useful chamber volume approx. 131 l
• Heating by 12 U-shaped MoSi2 heaters at 2 sides or graphite heating elements
• Heating power approx. 40 kW
• Gas- and vacuum tight chamber
• Vacuum pump stand for a final pressure < 1 mbar
• Gas feeding device with flow controller for N2
• Gas cooling for max. 0,7 m3 / h with a cooling capacity of app. 18 KW
• Reinforced bottom, for max. 100 kg bottom loading.
• Oxygen partical pressure measurement
• Emergency water cooling

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible standardized options

• Different controller systems
• Emergency gas flushing device
• Emergency water cooling
• Process Guiding Software
• Condensate trap
• Molybdenum heating elements
• Burning-off device with flame supervision for burnable gases
• Safety package for burnable gases
• Gas system for burnable gases
• Vacuum pump stand for end pressure < 1 x 10-3 mbar
