HT-1800-G-Vac-W-NC special

Tmax de hasta 1800 °C

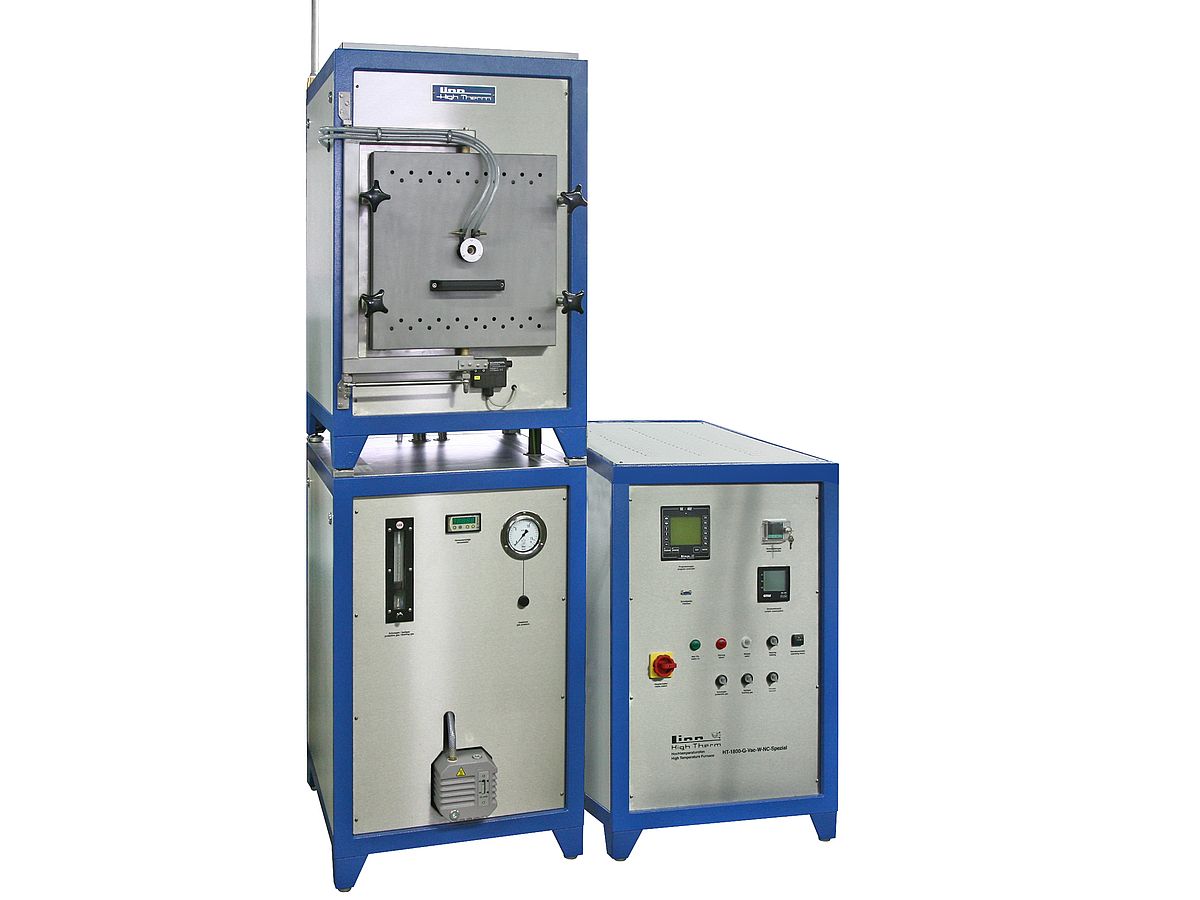

Chamber furnace for nuclear applications, high temperature, brick and PCW insulation, gas and vacuum tight, Tmax 1800 °C, 20 l, 28 kW

Aplicaciones:

melting, reduction, sintering, tempering

For fuel research and fabrication in nuclear industry.

Other possible areas of use could be sintering or calcining of oxydic or non-oxydic ceramics.

Especificaciones del producto

The most important characteristics:

Electrically heated and stone, fibre insulated furnace
Max. Temperature up to 1800°C
Adjusted to requirements of nuclear industry
Useful chamber volume approx.. 20l
Heating by 6 U-shaped tungsten heaters at 2 sides
Heating power approx... 28 kW
Gastight and vacuum tight furnace chamber
Vacuum tight gas installation with flow meter (N₂,Ar)
Vacuum unit for 10^-1 mbar

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible Standardized Options:

Different controller systems
Emergency gas flushing device
Emergency water cooling
Process Guiding Software
Circulation cooler
Condensate trap
MoSI2 and molybdenum heating elements
Burning-off device with flame supervision
Safety package
Gas warning system

Características del producto

Gama de productos:	special product
Modo operacional:	Batch
Tipo constructivo:	Furnace
Diseños:	Chamber furnace
Temperatura máxima (°C):	1800
Calentamientos:	electrical
Método de calentamiento:	resistance
Atmósferas:	Controlled gas atmosphere, Vacuum
Aplicaciones:	melting, reduction, sintering, tempering
