KK-U-model

Tmax de hasta 850 °C

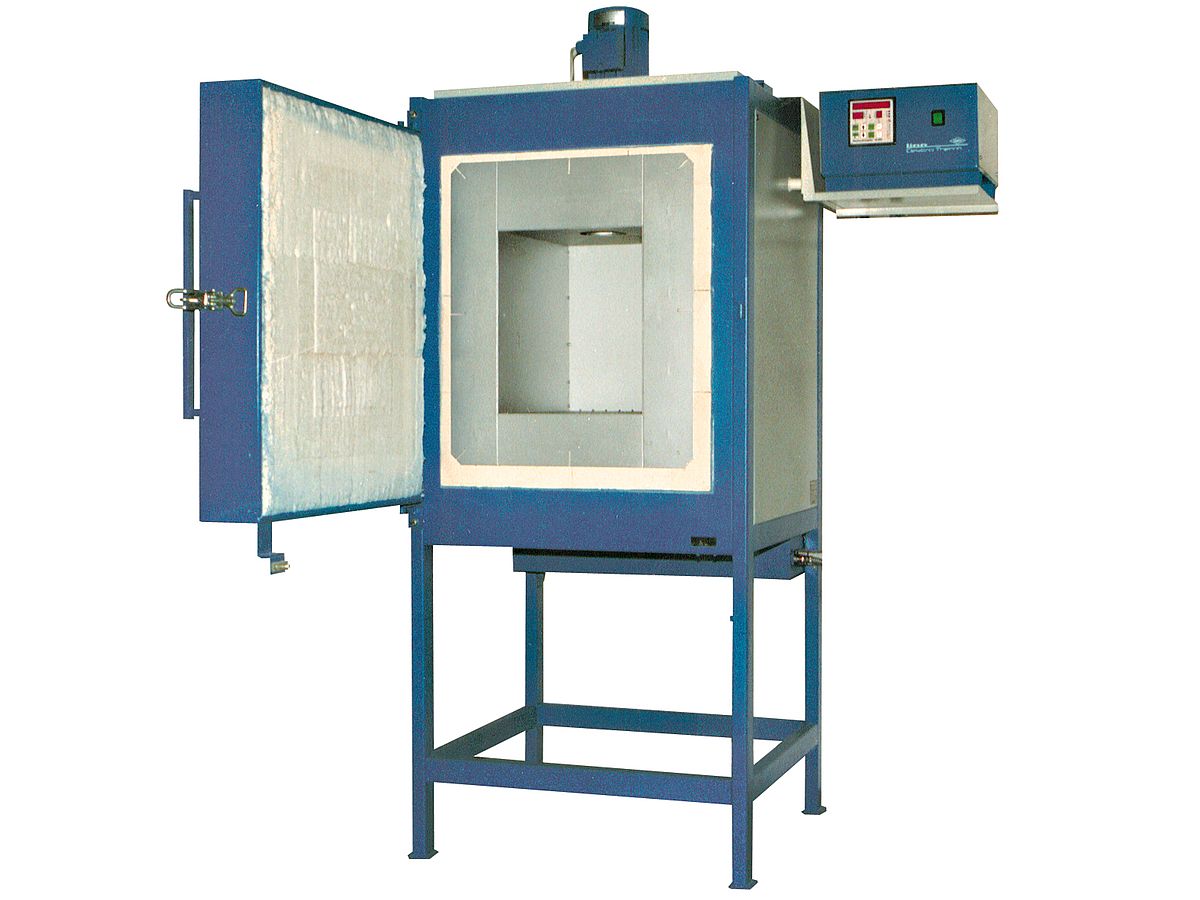

Air circulation chamber furnace, brick and ASW insulation, Tmax 850 °C, 44 - 350 l

Aplicaciones:

annealing, curing, debinding, dewaxing, drying, glueing, heat treatment, oxydation, pre-heating, shrink fitting, stress-relieving, tempering

The most important characteristics

Air circulation chamber furnace
Max. temperature 850 °C (long time operation 800 °C)
Insulation made of high quality lightweight refractory bricks and fiber modules in the furnace door.
High air change ensures an accelerated heat transmission
Very good heat distribution and fast heat transmission
Sheet steel construction in lightweight construction
Air circulation insert made of stainless steel
Easy to handle
High quality – made in Germany

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options

Temperature controller G 800
Serial interface
Temperature programme controller
Screen recorder

Especificaciones del producto

mSizes

Model	T. max in °C	Liter	Useful chamber mm (W x D x H)	Heating power kW
KK-U 80 L	550	44	300 x 410 x 360	6
KK-U 170 L	550	95	350 x 620 x 440	9
KK-U 260 L	550	170	500 x 620 x 560	15
KK-U 350 L	550	240	500 x 730 x 660	18
KK-U 500 L	550	350	500 x 930 x 760	21
KK-U 80	850	44	300 x 410 x 360	7,5
KK-U 170	850	95	350 x 620 x 440	12
KK-U 260	850	170	500 x 620 x 560	18
KK-U 350	850	240	500 x 730 x 660	21
KK-U 500	850	350	500 x 930 x 760	25

Technical data

Furnace housing

Furnace housing as well as housing of separate switch box consist of a lightweight steel construction. As protection against corrosion they are coated with structure lacquer. The chosen colours blue/white give the whole furnace an attractive looking.

Insulation

The furnace is made with high quality insulating refractory bricks and the door is lined with fibre modules.

The additional fibre insulation ensures a high thermal capacity at low energy consumption.

Air circulation insert

The air circulation insert is made of stainless steel 1.4841 (850°C) and 1.4301 (550°C). The heat resistant air circulation fan is installed in the furnace ceiling. The air will be blown out radially. It will be passed by through the air circulation insert on the heating spirals. (sides and back wall). The heated air will then be led in through the floor grate into the real useful chamber. Here it will be again sucked axially. (vertical air conduction). The so described high air exchange accelerates the heat transmission to the to be treated material and ensures a uniform temperature distribution.

Heating

The heating is effected through free radiant Kanthal-A-1-heating spirals (hair pins) in the grooves of the lining in the back wall and side walls.

Control unit

The control unit is in a separate switching part which is connected over flexible lines with the furnace part and can be added to the furnace. The furnace will be delivered with the subsequent described controller G400:

Two or three point controller with PID behaviour
Logic output
A heating speed freely programmable / ramp function
Display of actual value (desired value displayed after pressing the button)
Self optimization prevents overshooting
Separation of operator level and configuration level
Alarm signal in case of thermocouple fracture
Timer with turn on & turn off delay (Holding time)

Características del producto

Gama de productos:	type series
Modo operacional:	Batch
Tipo constructivo:	Furnace
Diseños:	Chamber furnace
Temperatura máxima (°C):	850
Calentamientos:	electrical
Método de calentamiento:	resistance
Atmósferas:	Air
Aplicaciones:	annealing, curing, debinding, dewaxing, drying, glueing, heat treatment, oxydation, pre-heating, shrink fitting, stress-relieving, tempering
