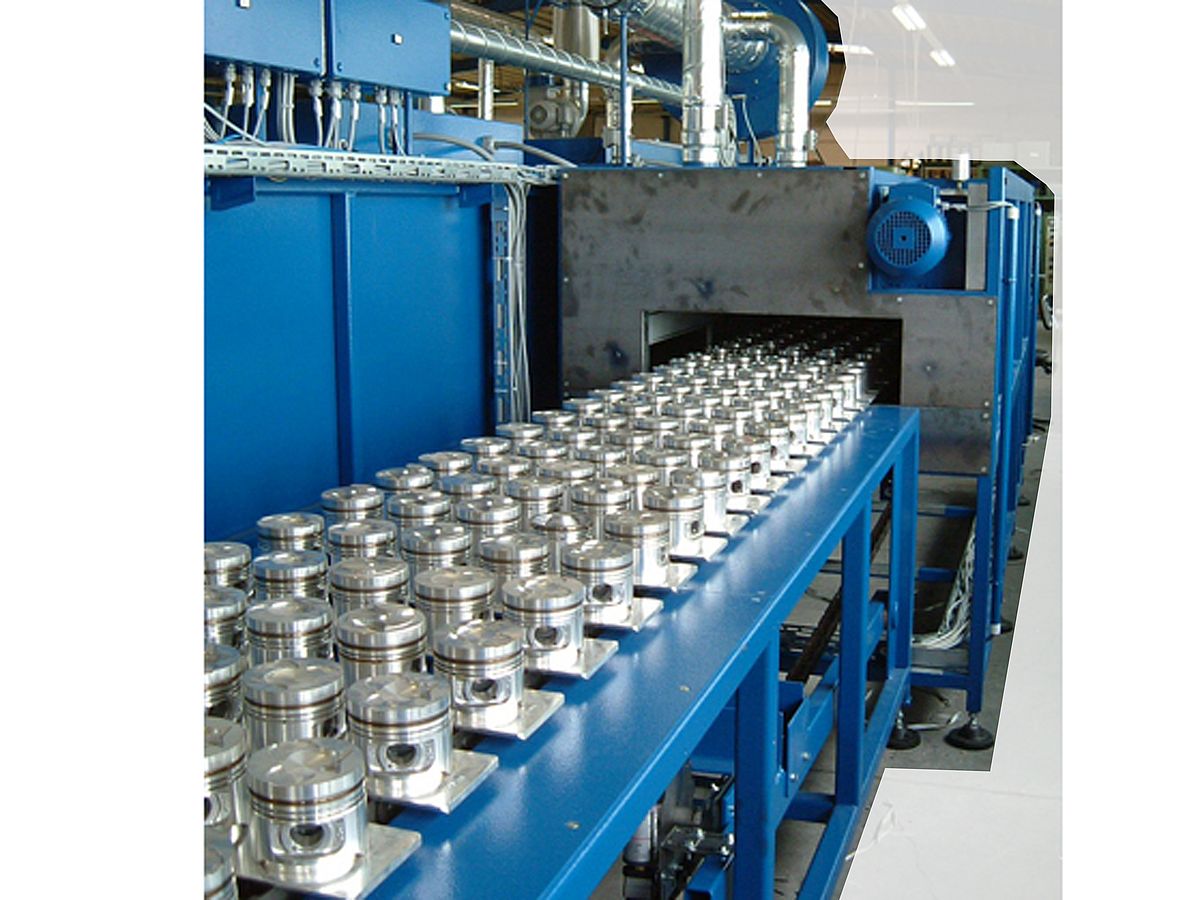

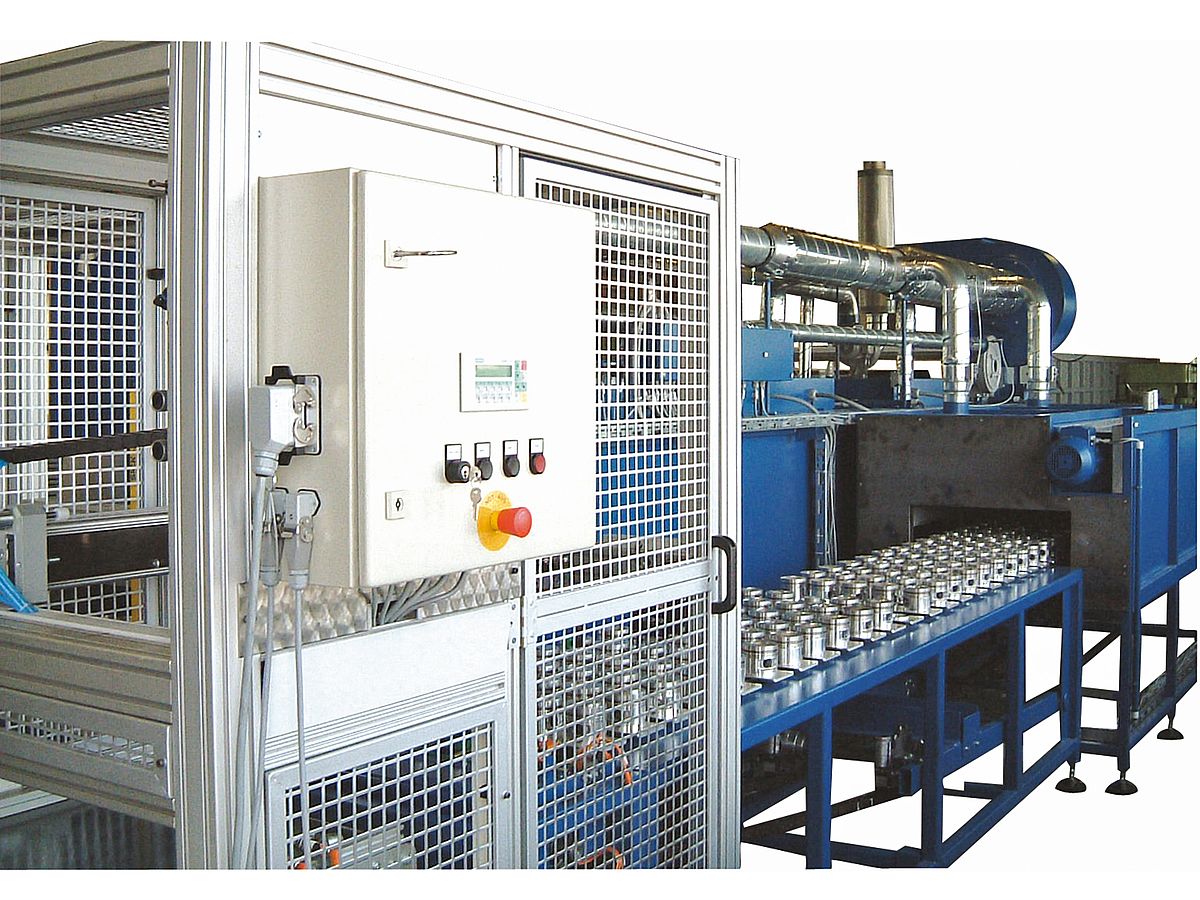

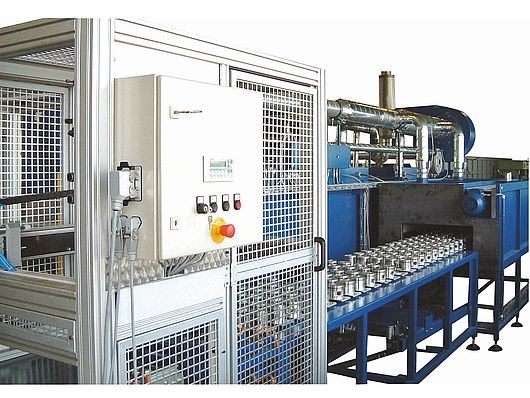

For curing and cooling of coated aluminum pistons on transport pallets in cyclic operation.

Further possible applications:

• Lacquer drying according to DIN EN 1539 (not EX protected), curing, drying

The most important characteristics:

• Thermal process especially adapted to the product for curing of a surface coating on aluminum surfaces
• Compact continuous belt furnace for application in industry with a useful chamber of app. 997 l (heated length: W 700 x H 250 x D 5.700 mm)
• Design as reverse product flow furnace (loading and unloading at same furnace side)
• Synchronized cross conveyor at the inlet and at the end of the heating track
• Transport of the material on product carriers/pallets via chain conveyor lines
• Cycle time 60 sec. (alterable), middle transport speed 163 mm/min
• The heating system is designed a heating register with tube radiators and separated in two heating ones à 37,5 kW each
• Transport of the pallets is effected by two parallel chain lines through the furnace and cooling channel
•
• Horizontal air duct in the heating zones by three two-way installed cross-flow fans and two cross-flow fans in the cooling track with a volume flow of 3000 m³/h each
• Staggered cooling system consisting of an active cooling zone and a subsequent free radiation area
• Automated operation mode
• Robust design
• Quality made in Germany

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options:

• Various temperature program controller
• Screen recorder
• Process guiding software depending on control system
• Linking with handling systems for charging and discharging
• Modular set-up of heating and cooling zones
