Pyrolysis of organic materials

Other possible applicatons are:

• Sintering of metallic powder
• calcination, drying, heat treatment of bulk materials (powder, granules, …)
• active carbon production
• Research and Development
• Reduction

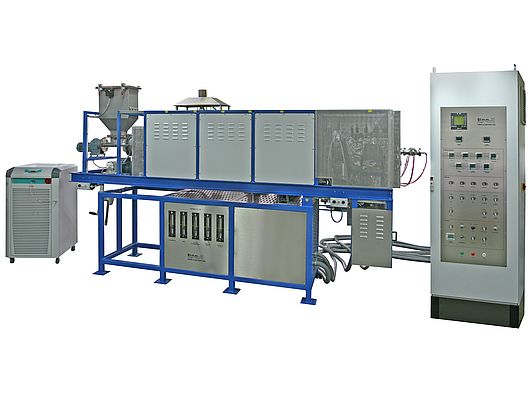

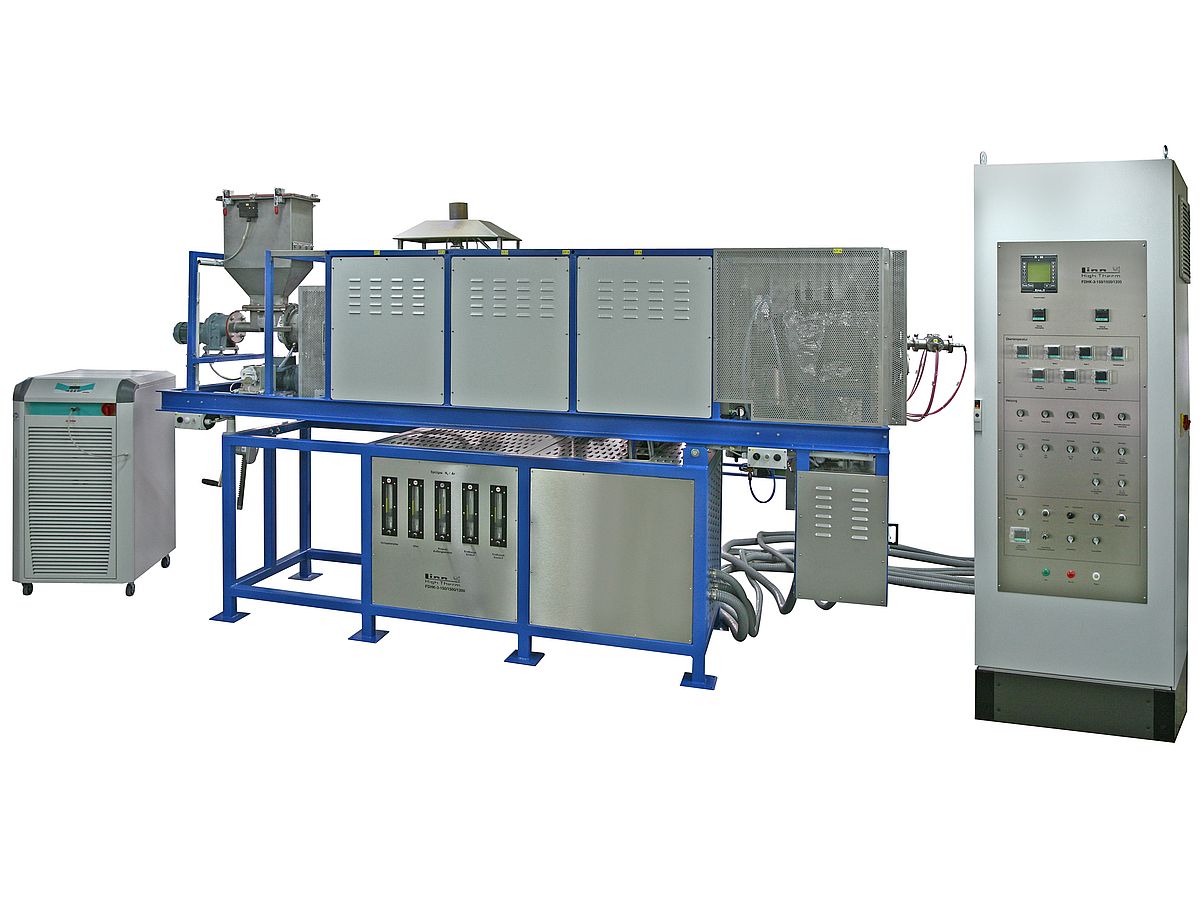

The most important characteristics

• fully-automated operation
• laboratory rotary tube furnace
• 3 heated zones
• 600 mm heated length
• 150 mm tube diameter
• 17 kW max. heating power
• Gastight design
• adjustable furnace inclination 0 – 10 ° and speed up to 20 min^-1
• easy to handle
• resistance heated with FeCrAl-heating elements
• Max. operating temperature up to 1200 °C
• Tube breakage monitoring
• Metallic insert tube (Inconel 601)
• Insulation of high-quality ceramic fiber
• High energy efficiency
• 6 trailing thermocouples for temperature measuring in the tube
• Screw conveyor
• Gas feeding device for 5 gases (Ar, N2, H2O_(D), CO2, Butan)
• Inspection glass for visual process control or additional pyrometer measuring
• Gas feeding device for safe operation when using flammable and explosive gases
• Burning-off device with flame supervision for safe operation when using flammable and explosive gases
• Safety package for safe operation
• Gas warning system for safe operation when using flammable and explosive gases
• 2 condensate traps (1 x water cooled +20 °C, 1 x coolant-cooled up to -20 °C)
• Process guiding software for full control and documentation via PC
• Candle filter up to 7 µm, 500 °C in the exhaust pipe
• Storage tank and collecting vessel
• Cooling water-re-cooling unit

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible standardized options

• Different temperature controller
• Vibration conveyor
• More heating zones for precise temperature control
• Fittings in the insert tube for improvement of the flow qualities
• uninterruptible power supply (UPS)
