FRH-3-150/1000/1250 Bifilar

tmax up to 1250 °C

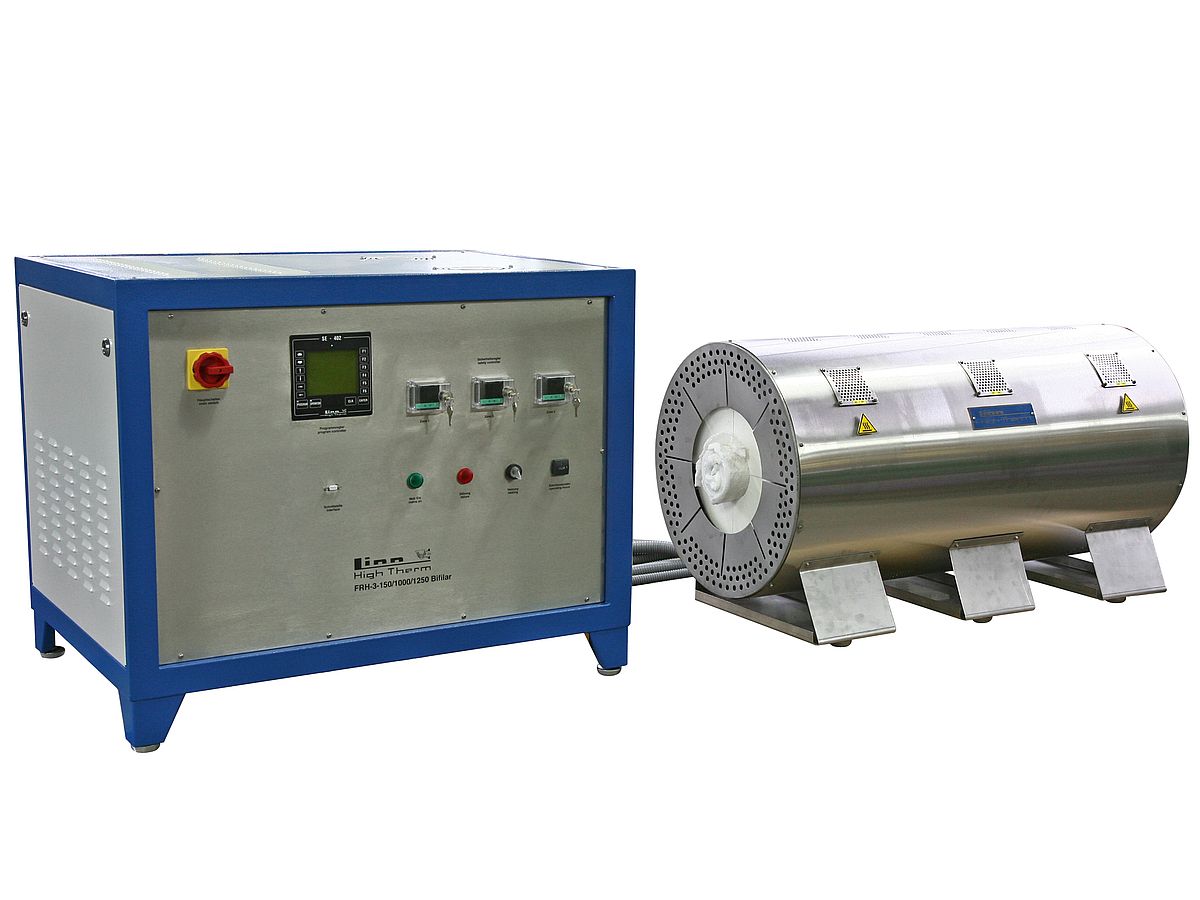

Tube furnace, bifilar, ASW insulation, Ø 150 mm, heated length 1000 mm, Tmax 1250 °C, 10 kW

Applications:

brazing, calibration, pulling, tempering

Joining of metal and glass composites

Other possible applications:

Drying, heat treatment and melting of powder, granulates, metals,…

Product Specifications

The most important characteristics:

3 zones horizontal tube furnace

Bifilar electrically heated for reduced magnetic field

Max. continuous working temperature 1250°C

Useful volume: diameter 150 mm, length 1000 mm

Heating by FeCrAl tube heating modules

Heating power app. 10 kW

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Possible standardized options:

Different controller systems

Process guiding software

Closed loop fast cooling by gas-recirculation (gas-tight)

Gas feeding device (Ar, N₂)

Burning-off device with flame supervision

Safety package

Product properties

Product Line:	special product
Operation Mode:	Continous
Construction Types:	Furnace
Designs:	Tube furnace
Temperature Max (°C):	1250
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air
Applications:	brazing, calibration, pulling, tempering
