FRH-3-450/800/1050-Vac-S

tmax up to 1050 °C

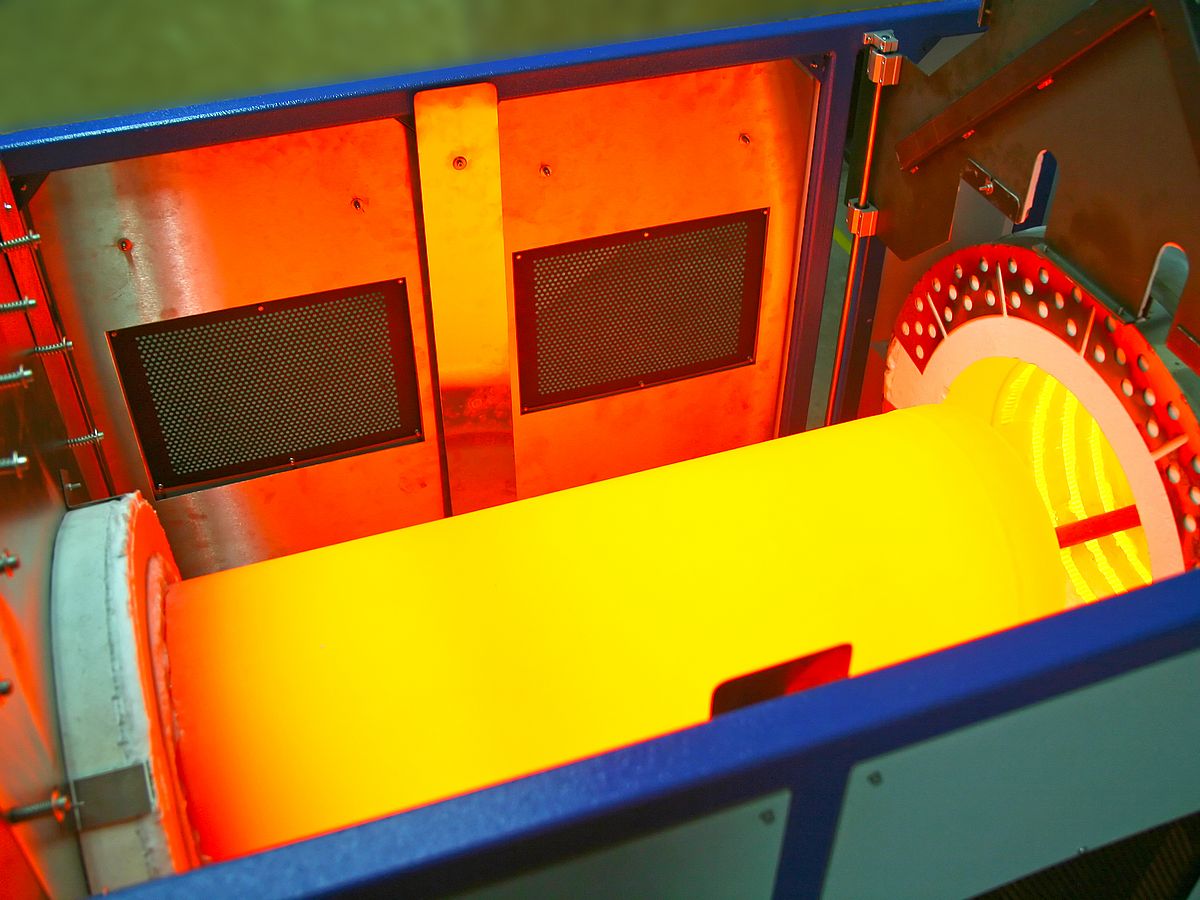

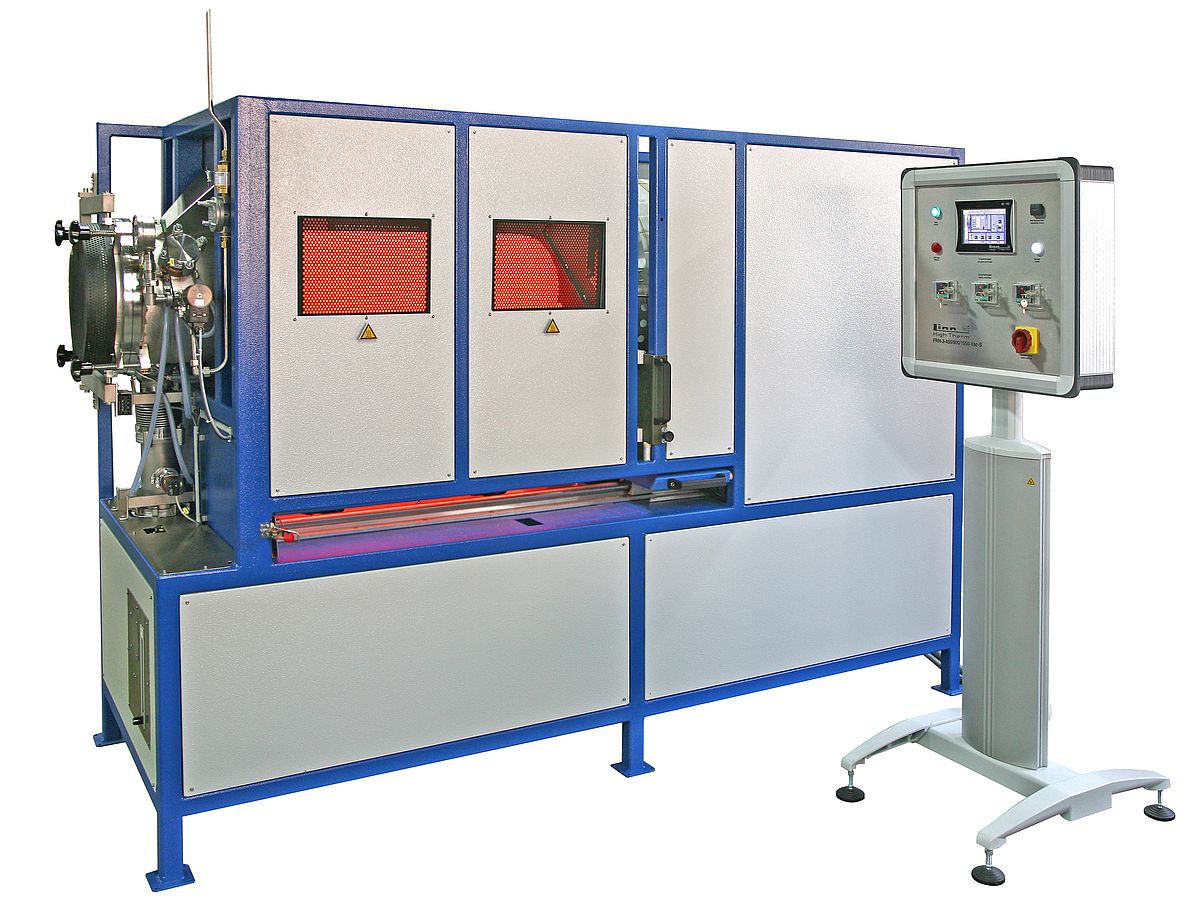

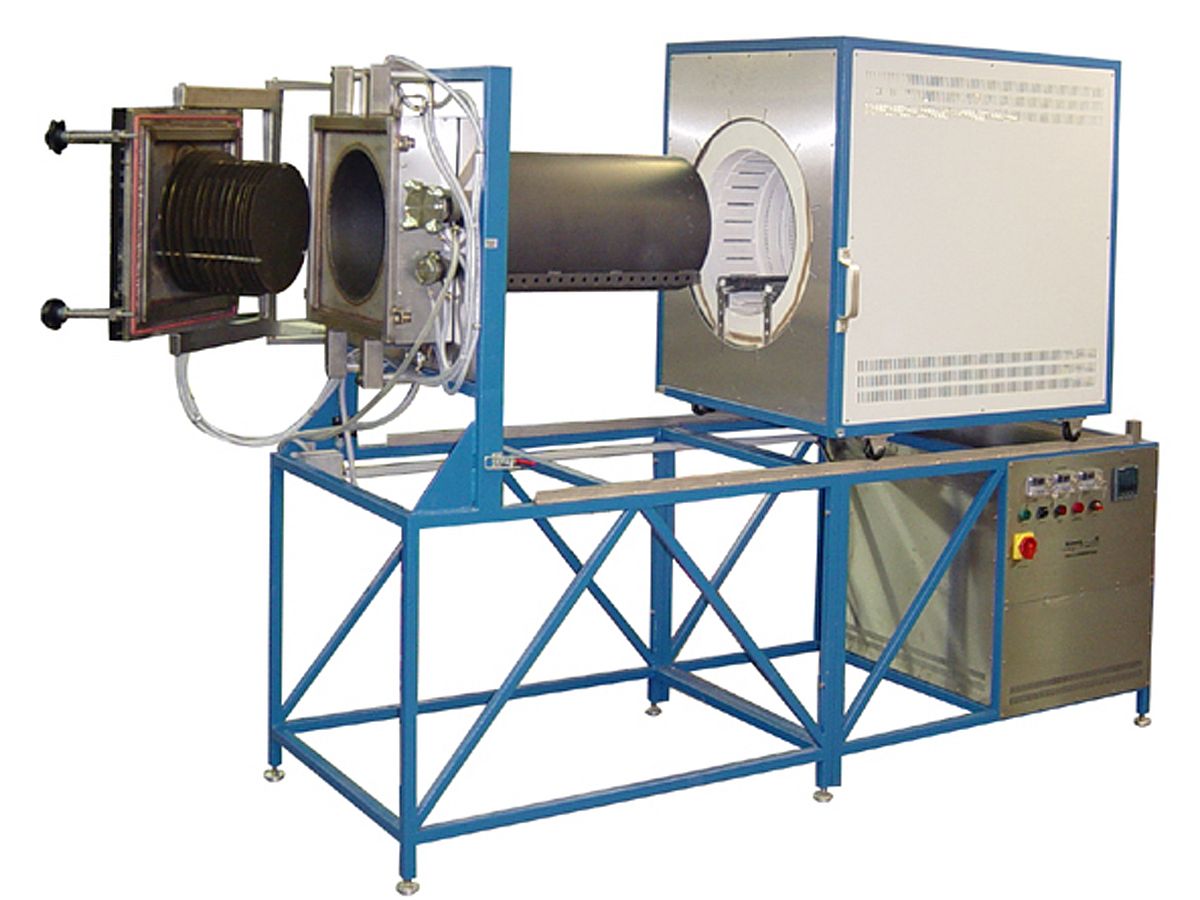

Tube furnace, ASW insulation, high temperature, gas and vacuum tight, Ø 450, heated length 800 mm, Tmax 1050 °C, 26 kW

Applications:

annealing, bright annealing, tempering

For heat treatment of zirconium parts under controlled atmosphere and vacuum.

Other possible applications:

Annealing processes in watch industry

Research and development

The most important characteristics:

Max. temperature up to 1050 °C
Furnace manually moveable for fast heating up and cooling down cycles
Insulation made of energy saving ASW material
Vacuum 10^-5 mbar
Integrated power reserve for reaching the temperature and control accuracy
3 zone switching of the heating elements for better temperature control
Extremely short heating up and cooling down cycles
High quality steel, stainless steel design
Power app. 26 kW
Quality made in Germany
Easy operation and handling

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options:

Various temperature program controllers
Serial interfaces
Process guiding software
Insert tubes made of various materials (quartz glass, ceramic, inconel)
Protective gas tight end caps
Gas-feeding device
Safety devices for flammable and explosive gases
Vacuum operation up to 10^-7 mbar
Motor-driven moveable unit

Product properties

Product Line:	special product
Operation Mode:	Batch
Construction Types:	Furnace
Designs:	Tube furnace
Temperature Max (°C):	1050
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Controlled gas atmosphere, Vacuum
Applications:	annealing, bright annealing, tempering
