Products- Details

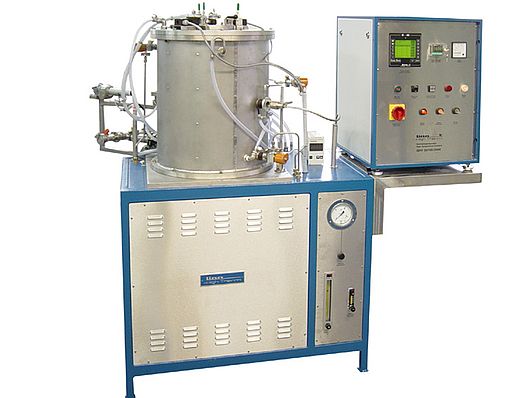

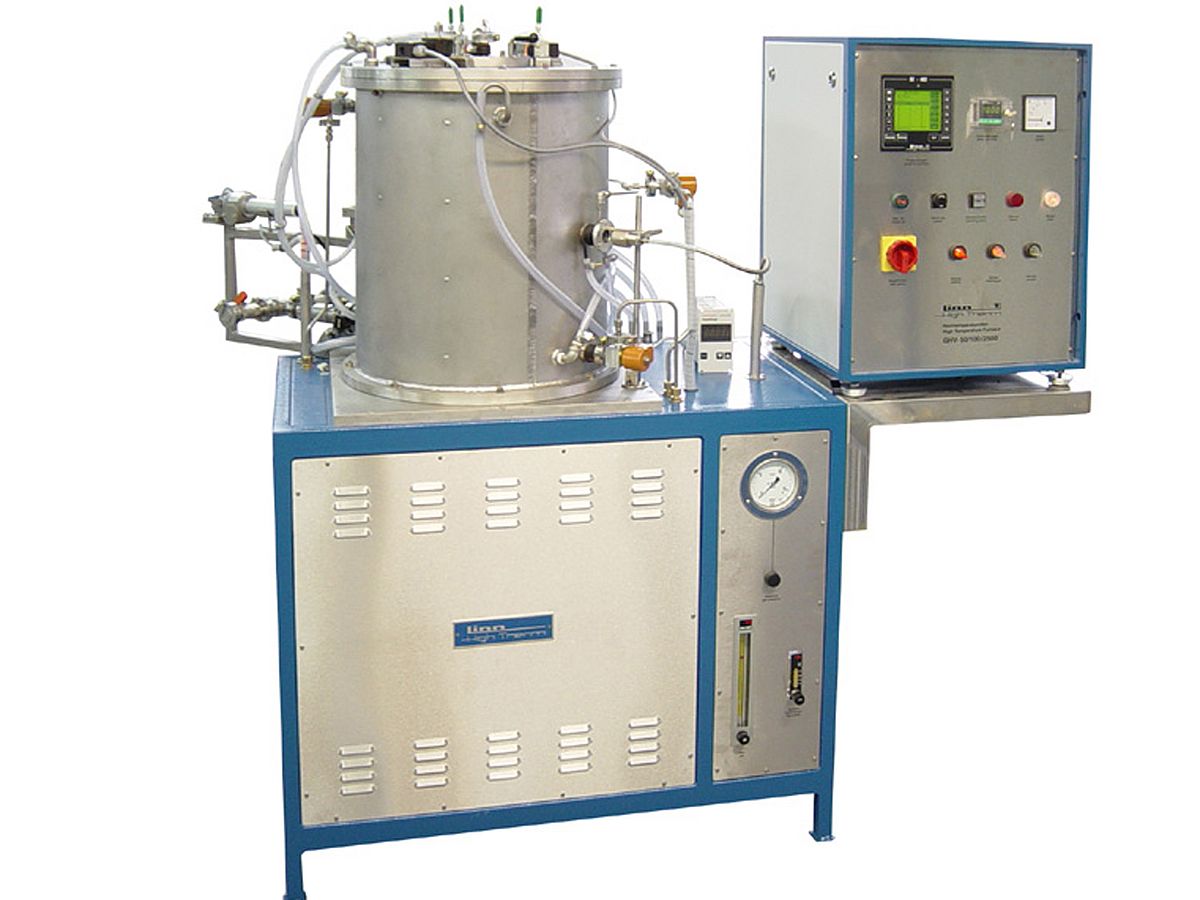

The most important characteristics:

• Graphite felt insulation
• Heated by zylindric graphite heating elements
• Heating power app. 8 KW
• Vertical operation
• Max. temperature up to 2500°C
• Useful chamber ø 50 mm, height 100 mm
• Gas and vacuum tight chamber
• Vacuum at T = 20 °C app. 5 x 10^-1 mbar
• Gas-feeding device with flowmeter for N2 and AR
• Process guiding software

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Possible standardized options:

• Useful chamber volume up to app. 200 l
• Charge weight up to app. 100 kg
• Horizontal operation
• Operation as bottom loader
• Operating temperatures in case of vertical furnaces up to 2800°C
• Various control systems
• Emergency gas purging unit
• Condensate trap
• Gas systems for flammable gases
• Burning-off device with flame supervision for flammable gases
• Safety package for flammable gases
• Vacuum pump stand for end pressure > 1 x 10^-3 mbar
• Water cooler and emergency water cooling
