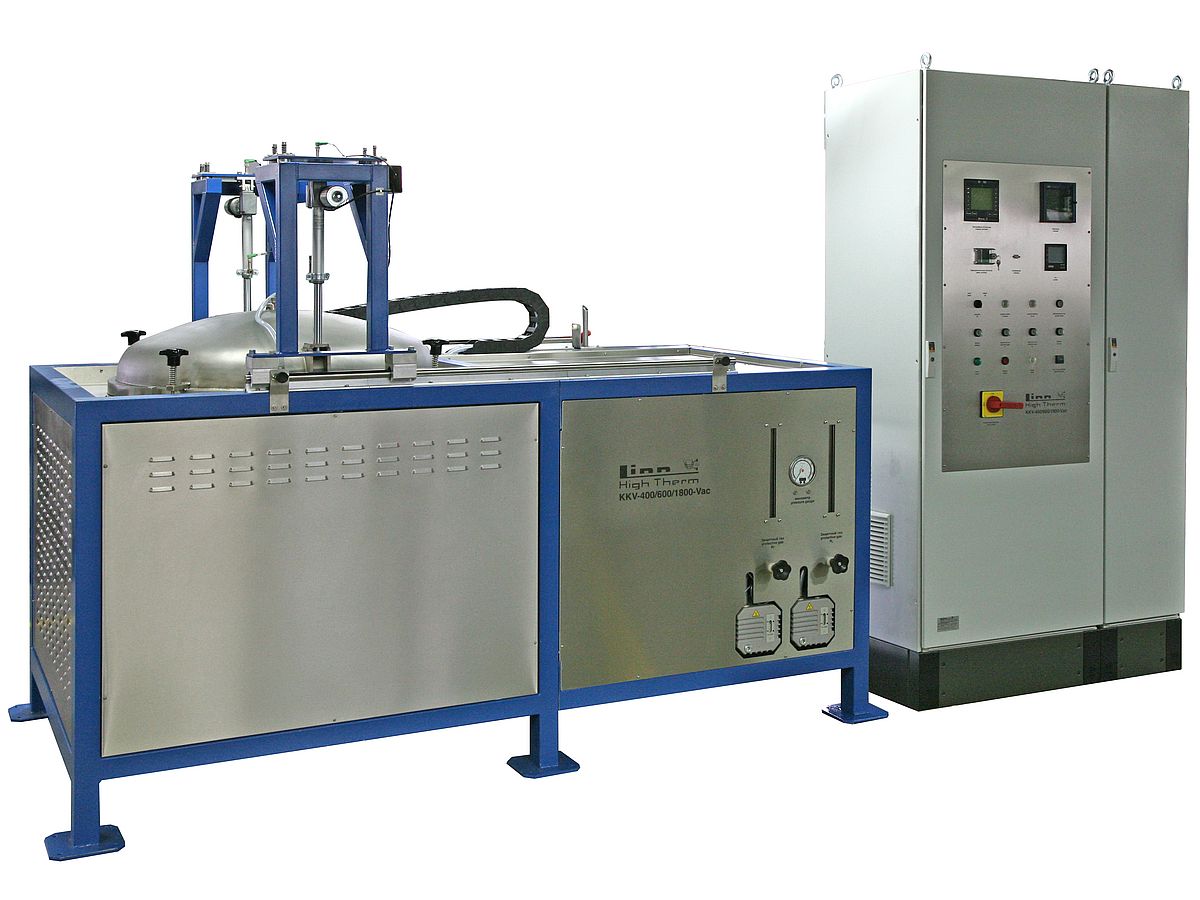

KKV-400/600/1800-VAC

tmax up to 1800 °C

Cold wall furnace with metallic heater and metallic shielding insulation package, gas and vacuum tight, Tmax 1800 °C, 75 l, 80 kW

Applications:

annealing, brazing, heat treatment, reduction, sintering

Annealing and sintering of metallic materials.

Other possible areas of use could be development and research on metallic and ceramic materials as well as for heat treatment of materials in nuclear area.

Product Specifications

The most important characteristics:

Molybdenum shield insulated furnace

Heating by a 3 phase molybdenum mesh heater

Heating power app. 80 KW

Vertical operation

Max. Temperature up to 1800°C

Useful chamber size ø 400 mm, height 600 mm

Useful chamber volume approx.. 75l

Charge weight app. 20 kg

Gas- and vacuum tight chamber

Vacuum at T = 20 °C app. 5 x 10-2 mbar

Gas feeding device with flow meter for N2 and AR

Watercooler and Emergency water cooling

Process guiding software

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible Standardized Options

Useful chamber volume up to app. 200 l

Charge weights up to approx. 1000 kg

Operation of furnace horizontal

Operating temperatures of vertical units up to 2800 °C

Different controller systems

Emergency gas flushing device

Condensate trap

Tungsten heating elements / shielding

Gas systems for burnable gases

Burning-off device with flame supervision for burnable gases

Safety package for burnable gases

Vacuum pump stand for end pressure > 1 x 10-3 mbar

Product properties

Product Line:	special product
Operation Mode:	Batch
Construction Types:	Furnace
Designs:
Temperature Max (°C):	1800
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Controlled gas atmosphere, Vacuum
Applications:	annealing, brazing, heat treatment, reduction, sintering
