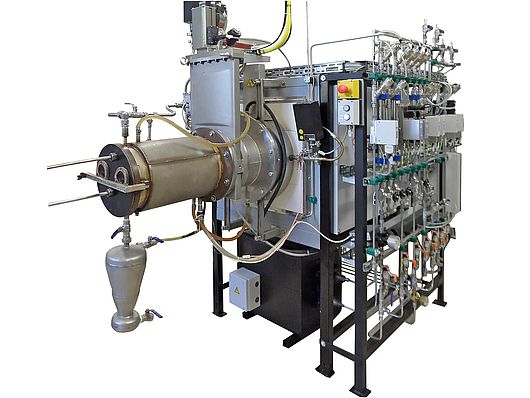

KS-3-80-S-special

tmax up to 750 °C

Chamber furnace, brick and ASW insulation, cylindrical muffle, gas and vacuumtight, Ø 380 mm, heated length 600 mm, Tmax 750 °C, 15 kW

Applications:

hardening, nitriding, nitrocarburizing, tempering

Gas nitriding of tempering steels (f.ex. 42CrMo4), which are due to its chemical composition appropriate for hardening and which show in tempered state a good ductility at tensile strength. Purpose of use f.ex.crank shafts, axle journal, drive rods cold extruded parts etc.

Further applications annealing, hardening, and tempering of metallic materials

Product Specifications

The most important characteristics:

3 zones electrically heated chamber furnace

Muffle material Inconel 601 (2.4816)

Max. continuous working temperature with muffle 750°C

Temperature distribution in useful chamber +/- 3 K

Useful retort volume: diameter 280 mm, length 500 mm

Gastight chamber locked by a vacuum lock

Gas feeding device, gas tight with mass flow controllers (H2,CH4,NH3,N2)

Heating by FeCrAl heating spirals

Heating power approx... 15 kW

Light weight refractory brick isolation

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible standardized options

Max. application temperature with insert muffle up to 1150 °C

Different controller systems

Different protective gases

Emergency gas purging device

Gas warning system

Burning-off device with flame supervision

Safety package

Closed loop fast cooling by gas-recirculation (gas-tight)

Circulation cooler

Emergency water cooling

Process Guiding Software

Product properties

Product Line:	special product
Operation Mode:	Batch
Construction Types:	Furnace
Designs:	Chamber furnace, Laboratory furnace
Temperature Max (°C):	750
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Controlled gas atmosphere
Applications:	hardening, nitriding, nitrocarburizing, tempering
