MDBH-9,6+30+3,8/160/30/750

tmax up to 1000 °C

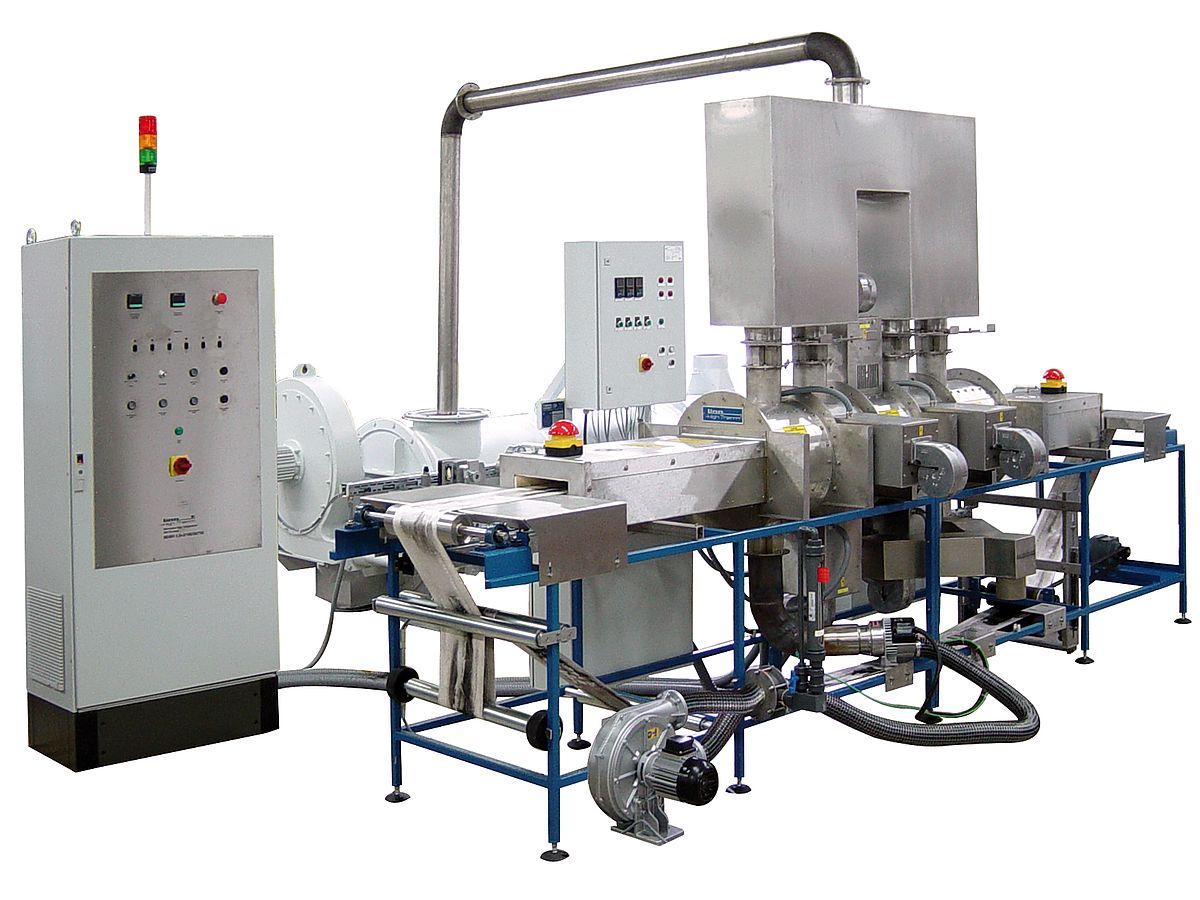

Microwave/resistance/hot air hybride belt furnace, ASW insulation, gas and underpressure tight, Tmax 1000 °C

Applications:

thermal recycling

Carbon fiber composite curing/recycling.

Other possible areas of use could be:

Microwave drying of various materials, e.g. bulk materials, liquids

Microwave treatment of chemicals, plastics, cork and food

Product Specifications

The most important characteristics:

Microwave, heating conductor and hot air heated

Heating by 12 magnetrons with 800 W each

Operating frequency 2,45 GHz

Heating power adjustable between 1,6 and 9,6 KW

Hot air heating power 30 KW

Max hot air temperature 900 °C

Resistance heating power 3,8 KW

Horizontal operation, 3 heating zones

Belt speed adjustable from 0,05 to 0,25 m/min

Max. temperature up to 1000°C

Ceramic fiber belt for high operation temperatures (up to 1000 °C)

Useful chamber size in every axis is about 370 mm

Heated length 750 mm

Smoke detector

Underpressure at T = 20 °C app. 200 mbar

Gas feeding device with flow meter

Air preheater for soot burn-off

Post-combustion exhaust gas after burning

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible standardized options:

Useful chamber volume up to app. 200 l

Charge weight up to app. 100 kg

Different controller systems

Cylindric chamber with doors

Gas and vacuum tight chamber

Process guiding software

CO2 extinguishing system

Product properties

Product Line:	special product
Operation Mode:	Continous
Construction Types:	Furnace
Designs:	Belt furnace
Temperature Max (°C):	1000
Heatings:	electrical
Heatingmethods:	hybrid, microwave/dielectric
Atmospheres:	Air, Controlled gas atmosphere, Vacuum
Applications:	thermal recycling
