The most important characteristics

FDHK-5-1400/10800/550

• Fully automated operation through centralized control system
• Rotary tube furnaces in industrial scale
• 5 heated zones
• 10800 mm heated length
• 1400 mm tube diameter
• 1500 kW max. heating power
• Adjustable furnace inclination 0 – 3 ° and number of revolutions 0,5 – 5 min^-1
• Acid resistant special steel for insert tube
• Conveyor
• Reducing of intermediates by clod buster
• Output up to 2 m³/h (2,5 to/h) at 20 % filling degree

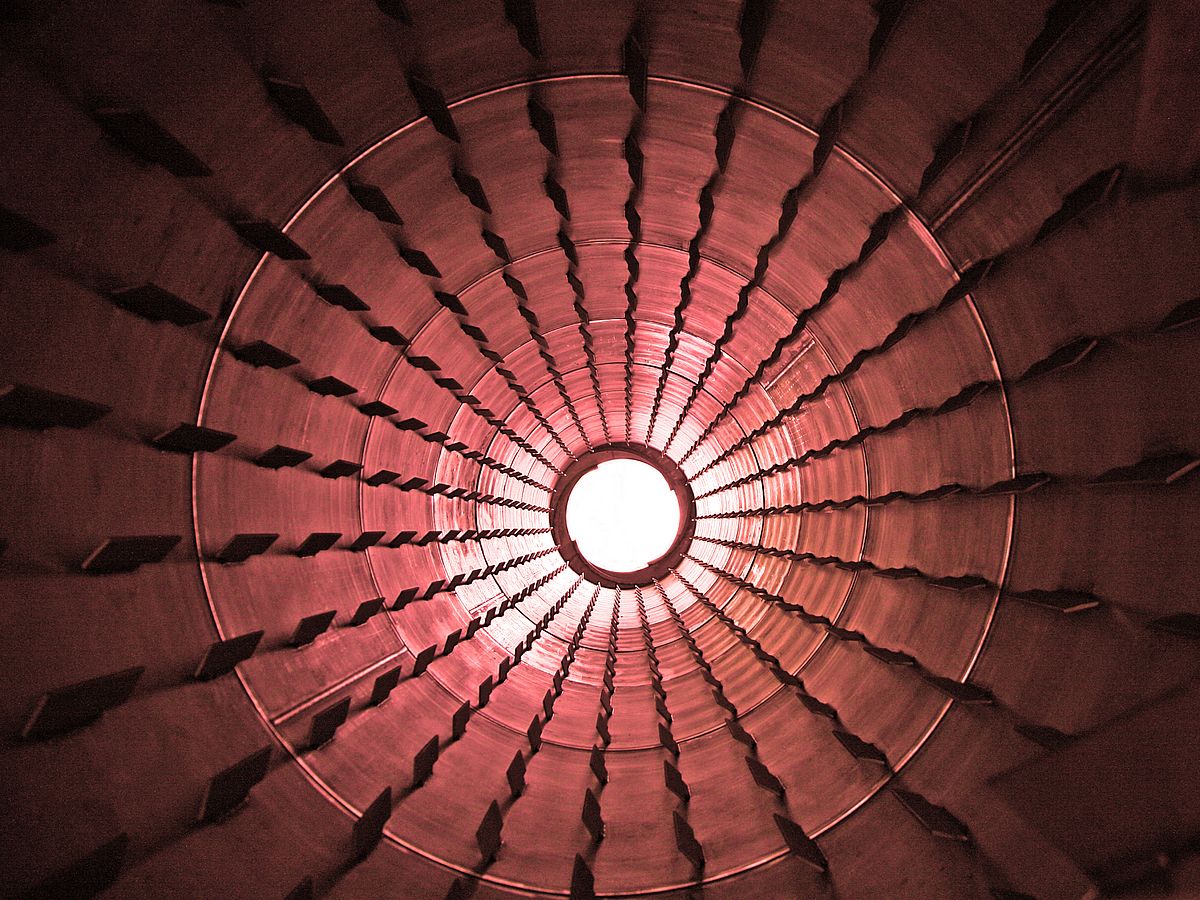

• Installations in the tube for better stirring and avoiding of  getting stuck
• Resistance heated with  FeCrAl heating elements
• Max. operating temperature up to 550 °C
• Tube fracture supervision
• Insulation of a combination of high quality ceramic fibre and insulating refractory brick
• High energy efficiency

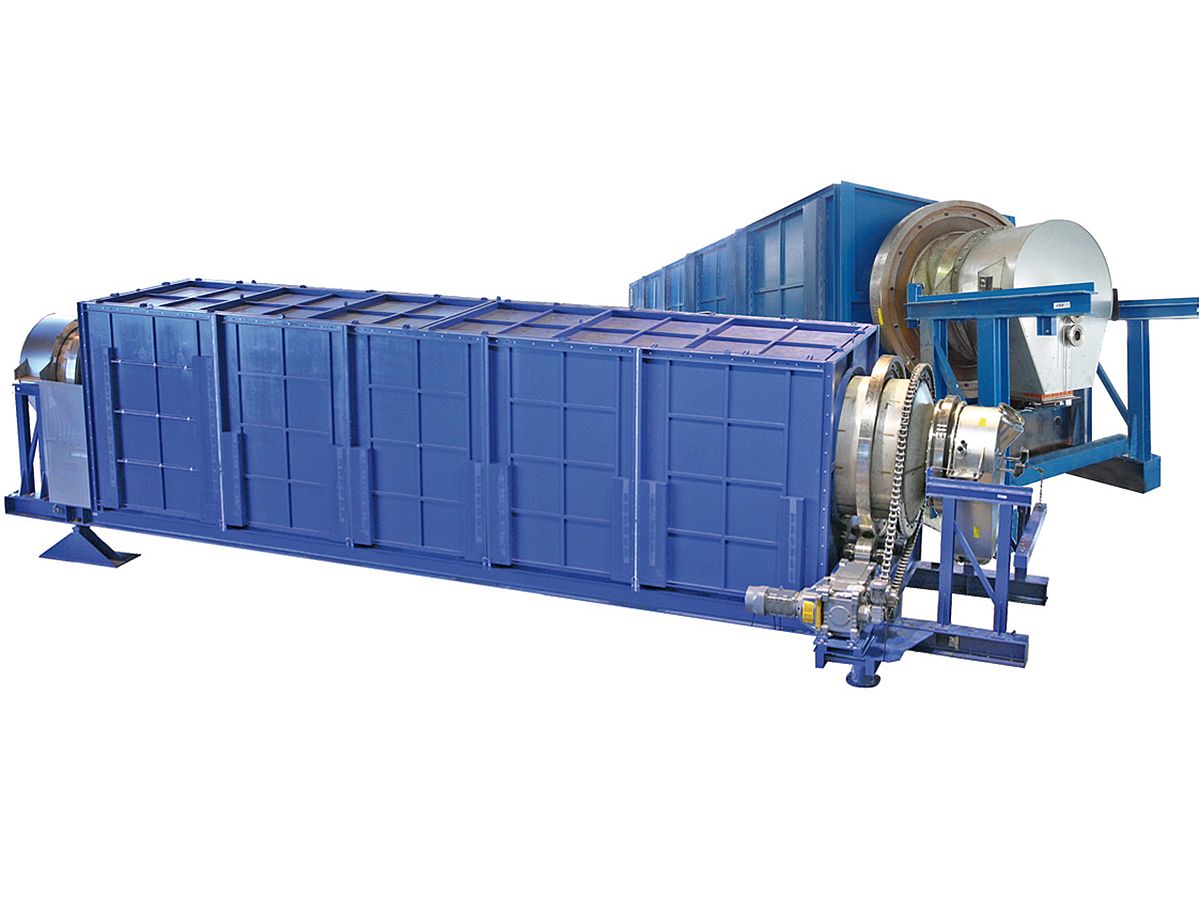

FDHK-5-1800/10800/550

• Fully automated operation through centralized control system
• Rotary tube furnaces in industrial scale
• 5 heated zones
• 10800 mm heated length
• 1800 mm tube diameter
• 650 kW max. heating power
• Adjustable furnace inclination 0 – 3 ° and number of revolutions 0,5 – 5 min^-1
• Output 1010 kg/h
• Addition of sulphuric acid
• Acid resistant special steel for insert tube
• Conveyor
• Reducing of intermediates by clod buster
• Output up to 1 m³/h (1,0 to/h) at 20 % fillng degree
• Installations in the tube for better stirring and avoiding of  getting stuck
• Resistance heated with  FeCrAl heating elements
• Max. operating temperature up to 650 °C
• Tube fracture supervision
• Insulation of a combination of high quality ceramic fibre and insulating refractory brick
• High energy efficiency

DHK-1800/5500/100

• Fully automated operation through centralized control system
• Rotary tube cooler in industrial scale
• Indirect water cooling
• 5500 mm cooled length
• 1800 mm tube diameter
• 60 kW cooling power
• Adjustable inclination 0 – 3 ° and number of revolutions 0,5 – 5 min^-1
• Simple handling
• Installations in tube for better stirring
• High energy efficiency

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible standardized options

• Different controller systems
• Process Guiding Software
• Circulation cooler
