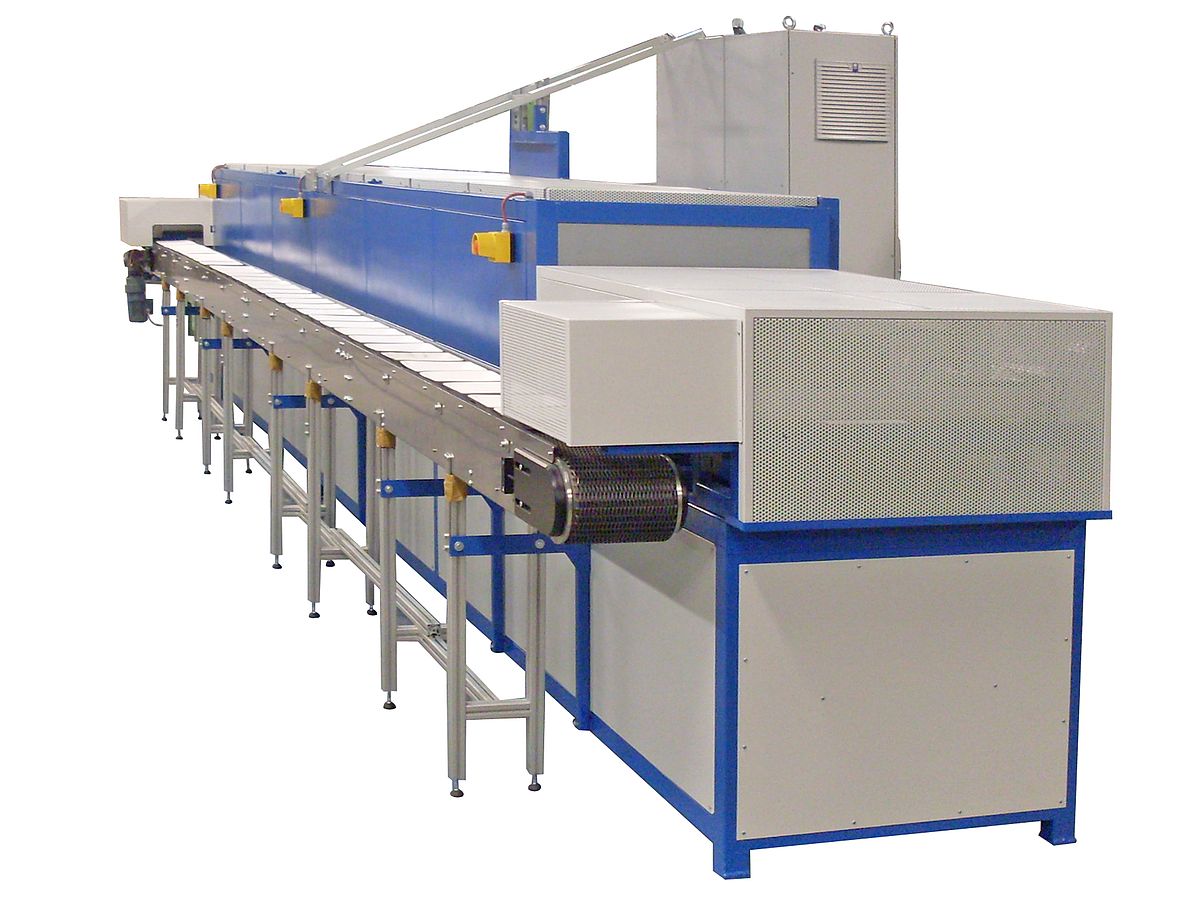

For calcination of piezo ceramic materials (PZT) in transport containers

Further possible applications:

• Drying, sintering and heat treatment of bulk materials (powder, granulate, pastes,…) in transport containers
• Research and development

The most important characteristics:

• Feed speed, continuously controllable 2,8 to 14,0 mm/min
• Automatic charging and discharging by shifting systems
• Accumulating conveyor belt for automatic, synchronized transport of the charge carriers before and after treatment (throughput power app. 40 kg / 8 h)
• 6-zone heating system (ceiling - bottom) with 105 kW
• Heated length of 6.500 mm with a width of 200 mm and height of 100 mm
• Max. operating temperature of 1000°C
• Resistance heated with FeCrAl heating elements
• Transport belt made of material 1.4841
• Air purging by retort for evacuation of evaporating materials
• Easy operation and handling
• Robust design
• Flexible applications
• Quality made in Germany

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options:

• Various further temperature program controllers
• Screen recorder
• Logging software depending on control system
• Protective gas flushing by non-flammable gases (N_2, .Ar)
