For sintering of fused silica tubes

Other possible applications are:

• Thermal process up to a working temperature of 1300°C

The most important characteristics

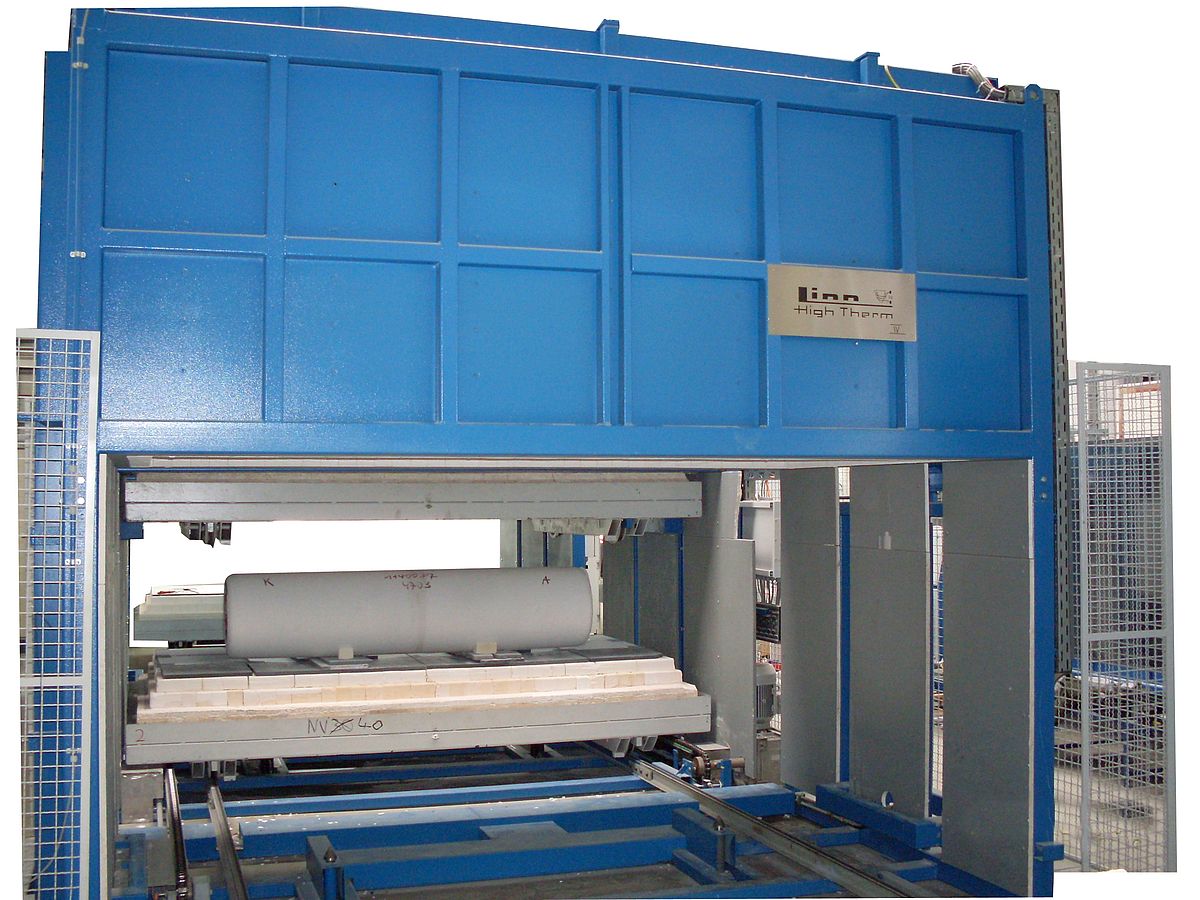

• Robust bell type furnace for the industrial application with a useful chamber volume of appr. 3200 l (W 2800 X H 880 X D 1300 )
• Via drag chain the heated shuttle kiln is movable on rails with a max. charging of 1000 kg
• Flexible movement speed depending on technology and charging from up to 1,2 m/ min.
• Hydraulic lifting system for retracting the shuttle kiln, rail-guided
• accelerated cooling via Program-dependent exhaust flaps in the furnace cover
• 5-sided resistance heated furnace unit with free radiating FeCrAl heating elements with 200 kW in one heating zone
• second shuttle kiln for mutual loading of the furnace unit
• Easy operation and handling
• Robust design
• Definable heating up and cooling down rates of each process, product and charging
• Quality made in Germany

Options

• Different further temperature program controllers
• Screen recorder
• Process guiding software depending on control system
• Extension by several covers and shuttle kilns to a production line

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.
