Products- Details

For dewaxing and sintering of casting moulds with a rest wax content of < 3%

Other possible applications are:

Drying, Sintering and heat treatment of casting moulds, casting cores and building components of metal and ceramic

The most important characterstics

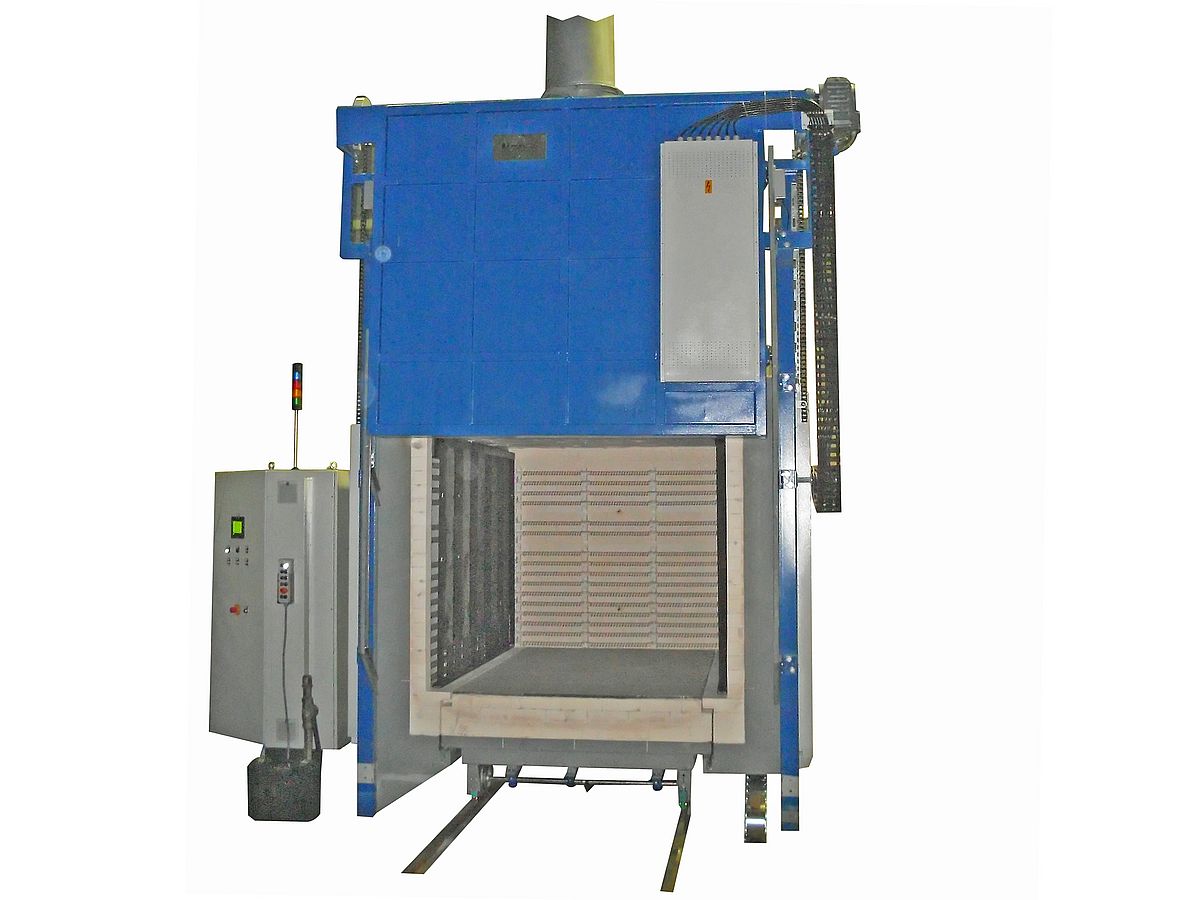

• Robust shuttle kiln for the hard industry purpose with a useful chamber volume of appr. 4300 l (W 1400 X H 1400 X D 2200)
• Motoric shuttle kiln, movable on rails, max. charging appr. 500 kg,
• flexible movement speed from 2,5 to 5 m/ min.
• electromotive lifting door, rail guided
• electrical air pre-heating up to 400 °C via medium-pressure fans with a volume flow of 900 m³ / h
• five-sided resistance heated furnace unit with free-radiating FeCrAl heating elements with 220 kW in two control zones
• Program-dependent exhaust flaps control
• Easy operation and handling
• Robust design
• Flexible applications, also possible as manually-movable shuttle kiln
• Definable heating up and cooling down rates of each process, product and charging
• Quality made in Germany

Options

• Different further temperature program controllers
• Screen recorder
• Process guiding software depending on control system
• Protective gas flushing by non-flammable gases (N_2, .Ar)
• Thermal after burning

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.
