For annealing and oxidizing of metallic catalysts

Other possible applications are:

• Annealing process up to 900 °C
• drying, sintering and heat treatment of metallic and ceramic building components depending on material

The most important characteristics

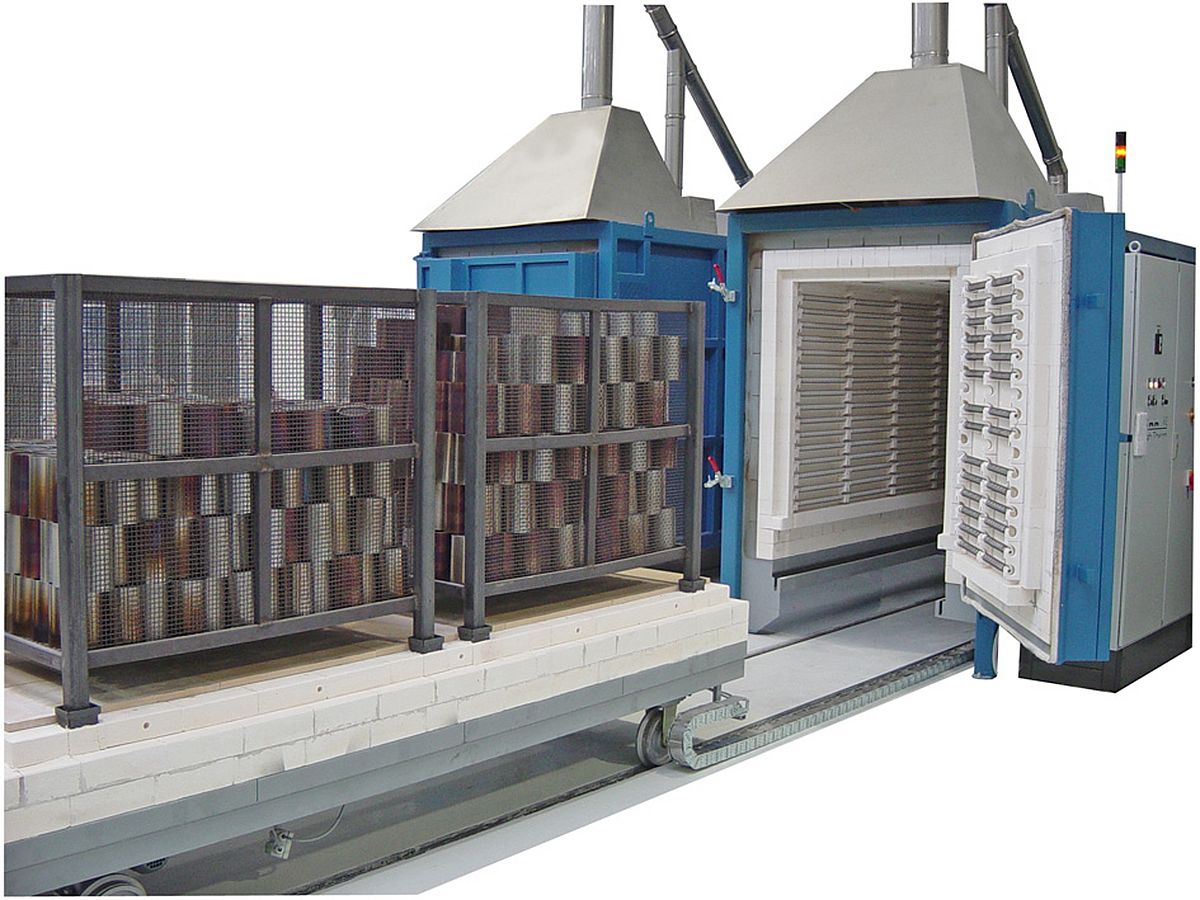

• robust shuttle kiln for the hard industry purpose with a useful chamber volume of appr.. 3000 l
• Motoric shuttle kiln, movable on rails, max. charging appr. 1.000 kg and a flexible movement speed of 4 to 5 m/ min.
• Swivelling door
• Program-dependent controlled cooling fan in the furnace bottom for speed-up oft he cooling behavior by medium pressure ventilators with a volume current of  420 m³ / h.
• Program-dependent exhaust flaps for influence of the cooling behavior
• 5-sided resistance heated furnace unit with free radiating FeCrAl heating elements with 160 kW heating power in two control zones
• Easy operation and handling
• Robust design
• Flexible applications
• Definable heating up and cooling down rates of each process, product and charging
• Quality made in Germany

Options

• Different further temperature program controllers
• Screen recorder
• Process guiding software depending on control system
• Flexible adaption to the energy management on customer’s site

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.
