T-Series

tmax up to 930 °C

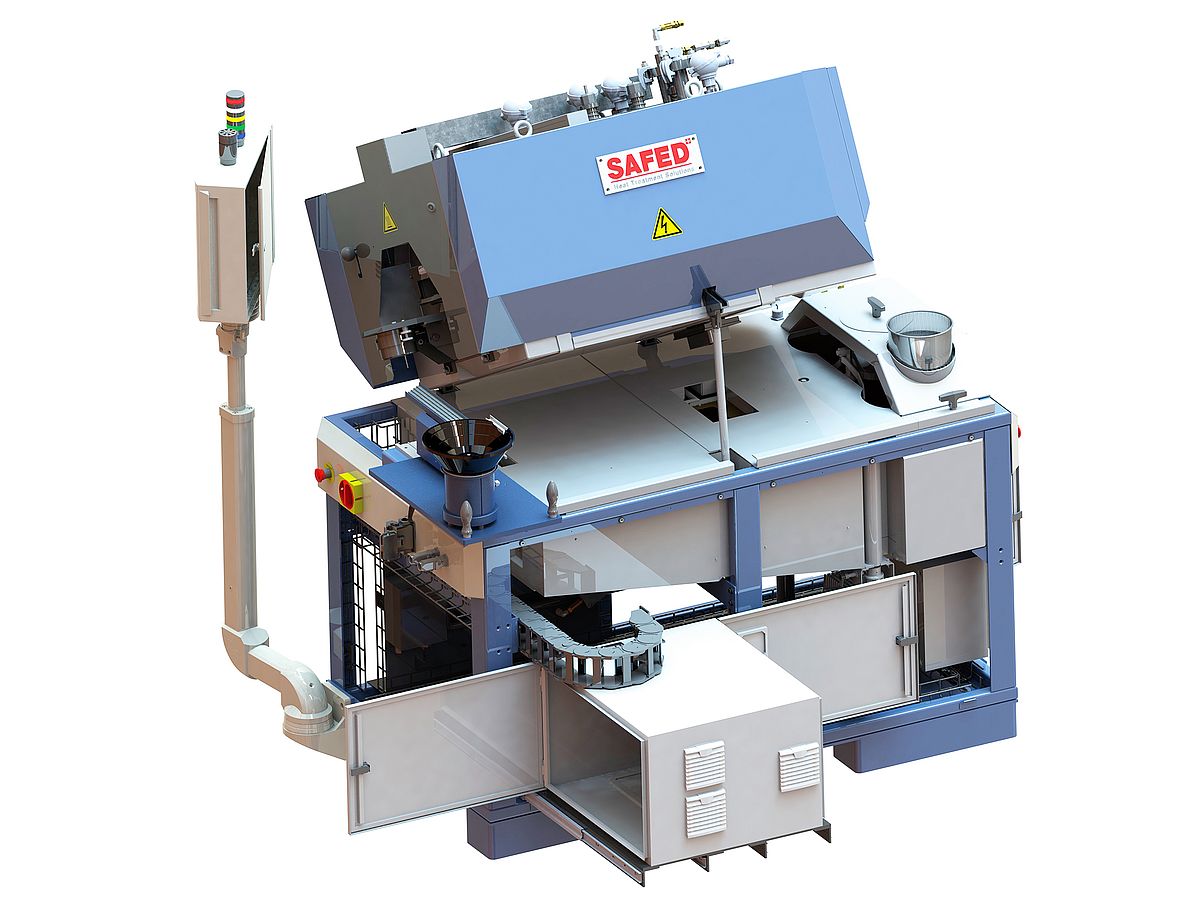

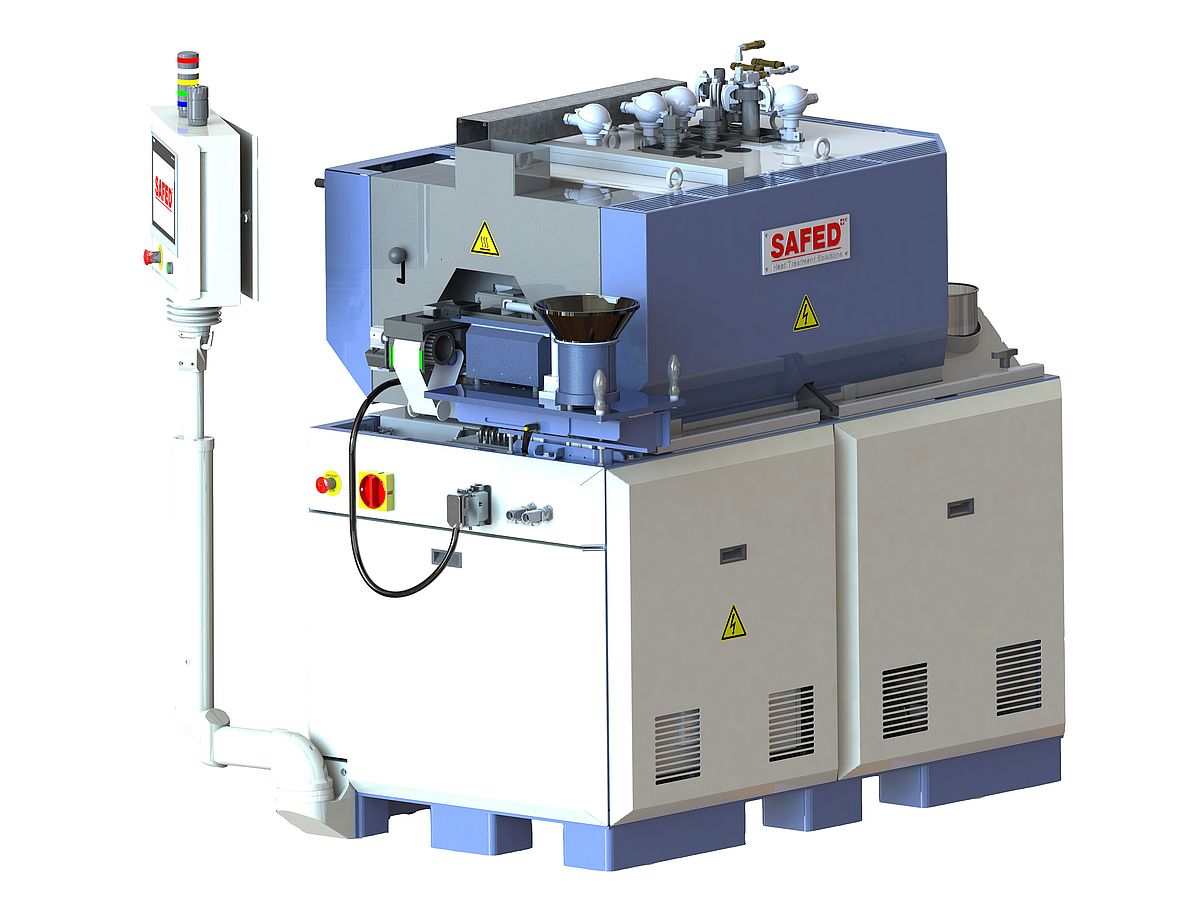

Electrically heated muffle furnace with conveyor belt for heat treatment under inert gas, with oil quenching container, Tmax 930 °C

Applications:

carburization, hardening

THE MAIN FEATURES

Resistance-heated furnace
Maximum furnace temperature: 930 °C
Operating temperature: 800-850 °C
Heating capacity: approx. 8 kW
Number of zones: 3
Heated length: approx. 600 mm
conveyor belt width: approx. 55 mm, channel height: approx. 15 mm
Process gases: methanol, nitrogen
Methanol splitter for direct inert gas generation in the furnace muffle
Conveyor belt with drive unit
Flaring device
Oil quenching tank
Max. Oil bath temperature: approx. 80 °C (optional: approx. 160 °C)
Curved carousel for product removal
Intake pipe for gas extraction
Switch cabinet IP55
fully automatic operation for constant product quality
freely configurable recipes for fully automatic system operation

WE MAKE IT HAPPEN
Linn High Therm is a specialist in adapting its products to customer requirements. Please let us know if you need modifications beyond the standard quotation. We will do everything we can to fulfill your wishes.

Product properties

Product Line:	type series
Operation Mode:	Continous
Construction Types:	Furnace
Designs:	Belt furnace
Temperature Max (°C):	930
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Controlled gas atmosphere
Applications:	carburization, hardening
