FBV-300x300/300/1700-S

tmax up to 1700 °C

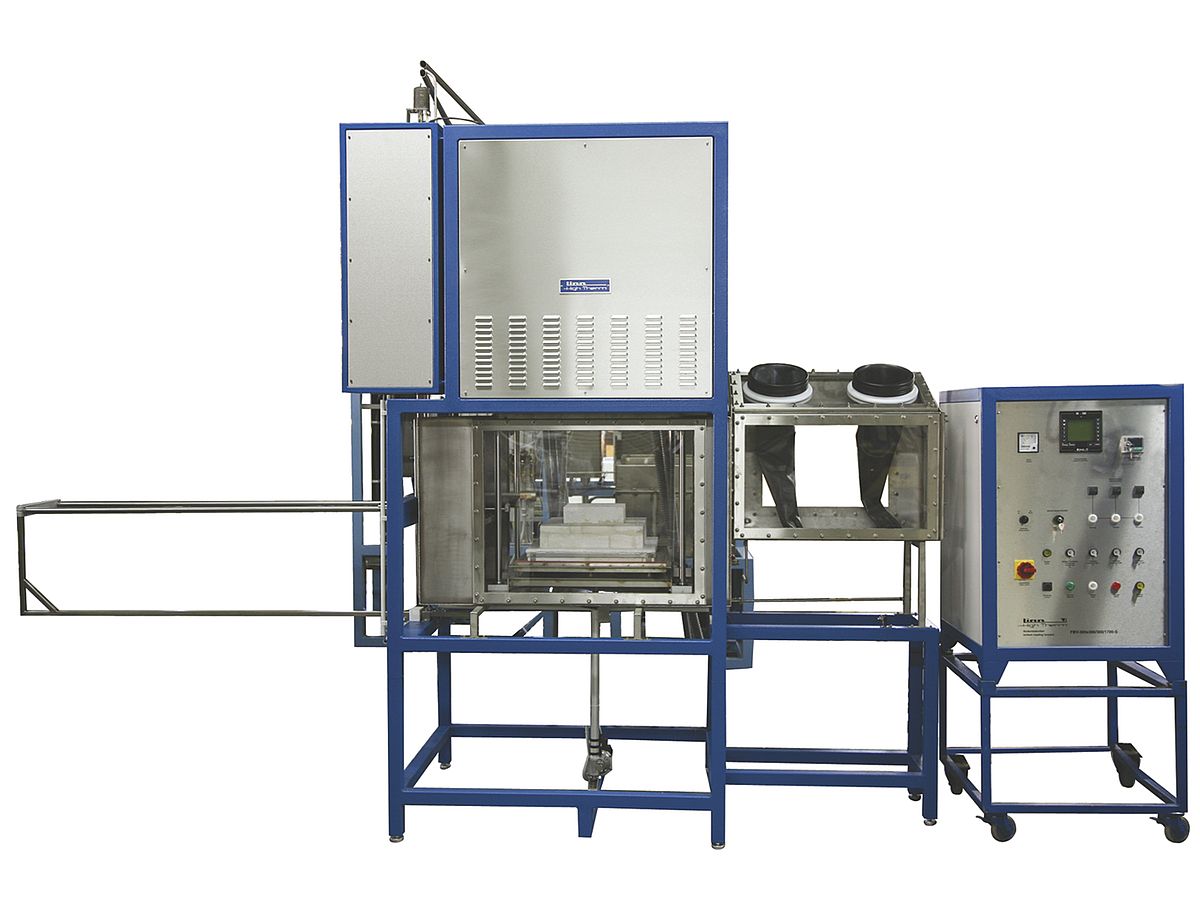

Chamber furnace, bottom loader, glove box, high temperature, brick and PCW insulation, gastight, Tmax 1700 °C, 24 kW, 27 l

Applications:

calcination, reduction, sintering

For production and research of luminescent powders (phosphors)

Other possible areas of use could be sintering or calcining of oxydic or non-oxydic ceramics.

The most important characteristics:

Electrically heated and stone and fiber insulated furnace

Max. temperature up to 1700 °C
Useful chamber volume approx. 27 l
Heating by 12 U-shaped tungsten heaters at 4 sides
Heating power approx. 24 kW
gastight chamber
Gas feeding device with mass flow controllers (Ar, H_2, N₂)
Burning-off device with flame supervision
Safety package
Gas warning system
Transferbox + charging device with controlled atmosphere

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications. We will do everything to satisfy your wishes.

Possible standardized options

Different controller systems

Emergency gas flushing device
Emergency water cooling
Process Guiding Software
Circulation cooler
Condensate trap
MoSI2 und molybdenum heating elements

Product properties

Product Line:	special product
Operation Mode:	Batch
Construction Types:	Furnace
Designs:	Bottom loader furnace
Temperature Max (°C):	1700
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Controlled gas atmosphere
Applications:	calcination, reduction, sintering
