FRH-3-250/1750/850

tmax up to 850 °C

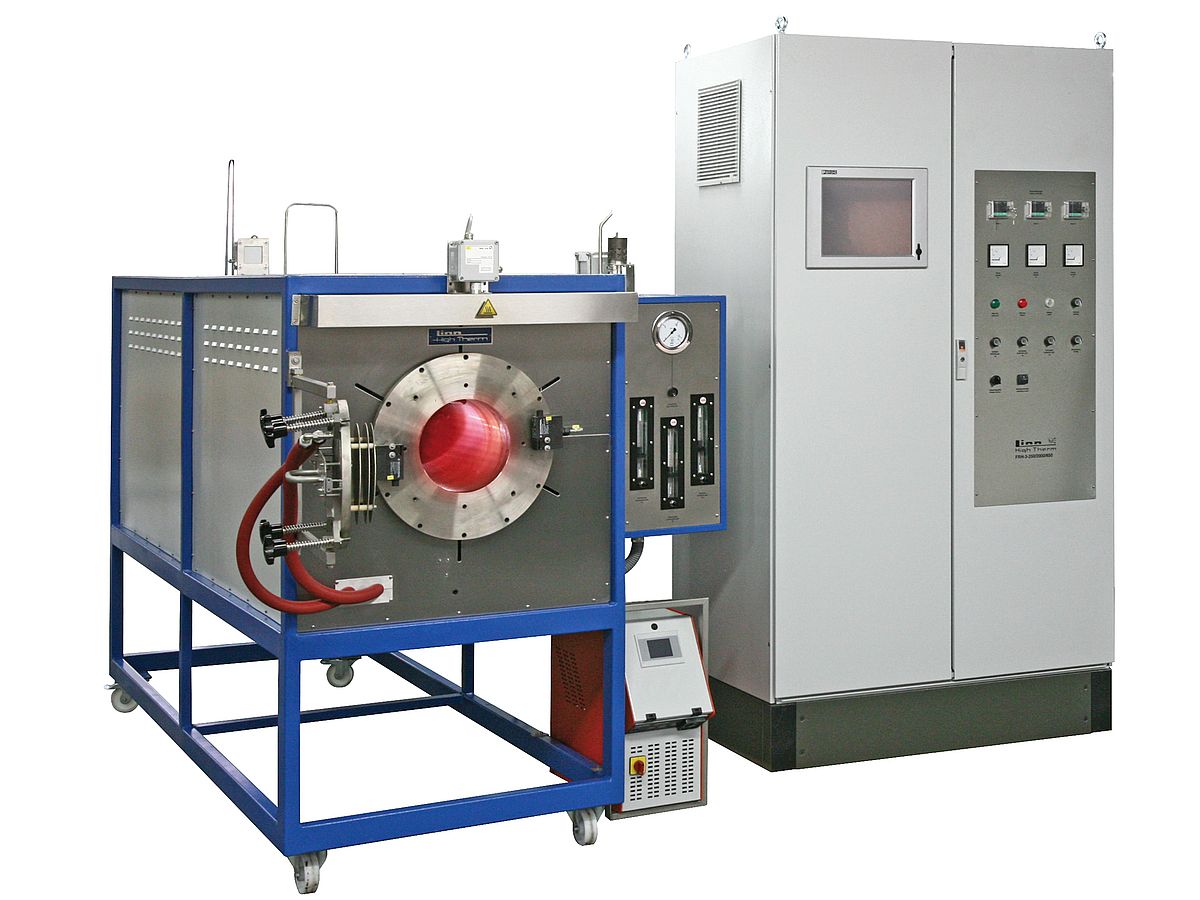

Tube furnace, ASW insulation, gas tight, Ø 250 mm, heated length 1750 mm, Tmax 850 °C, 35 kW

Applications:

brazing, carburization, heat treatment, pyrolysis, reduction, stress-relieving, surface coating, tempering, thermal recycling

Reduction of uranium oxides in hydrogen atmosphere

Other possible applications:

Drying and heat treatment of powder, granulates, metals,…

Pyrolysis

Carbonization

Debinding

Product Specifications

The most important characteristics:

3 zone horizontal tube furnace

Max. continuous working temperature with retort 850°C

Useful retort volume: diameter 250 mm, length 2000 mm

Gas feeding device (Ar, N₂)

Heating by FeCrAl tube heating modules

Heating power 35 kW

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Possible standardized options:

Different controller systems

Emergency gas flushing device

Gas warning system

Emergency water cooling

Process guiding software

Circulation cooler

Closed loop fast cooling by gas-recirculation (gas-tight)

Burning-off device with flame supervision

Safety package

Vacuum operation

Condensate trap

Product properties

Product Line:	special product
Operation Mode:	Batch
Construction Types:	Furnace
Designs:	Tube furnace
Temperature Max (°C):	850
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air, Controlled gas atmosphere
Applications:	brazing, carburization, heat treatment, pyrolysis, reduction, stress-relieving, surface coating, tempering, thermal recycling
