FAU-3-250/70/2400/950

tmax up to 950 °C

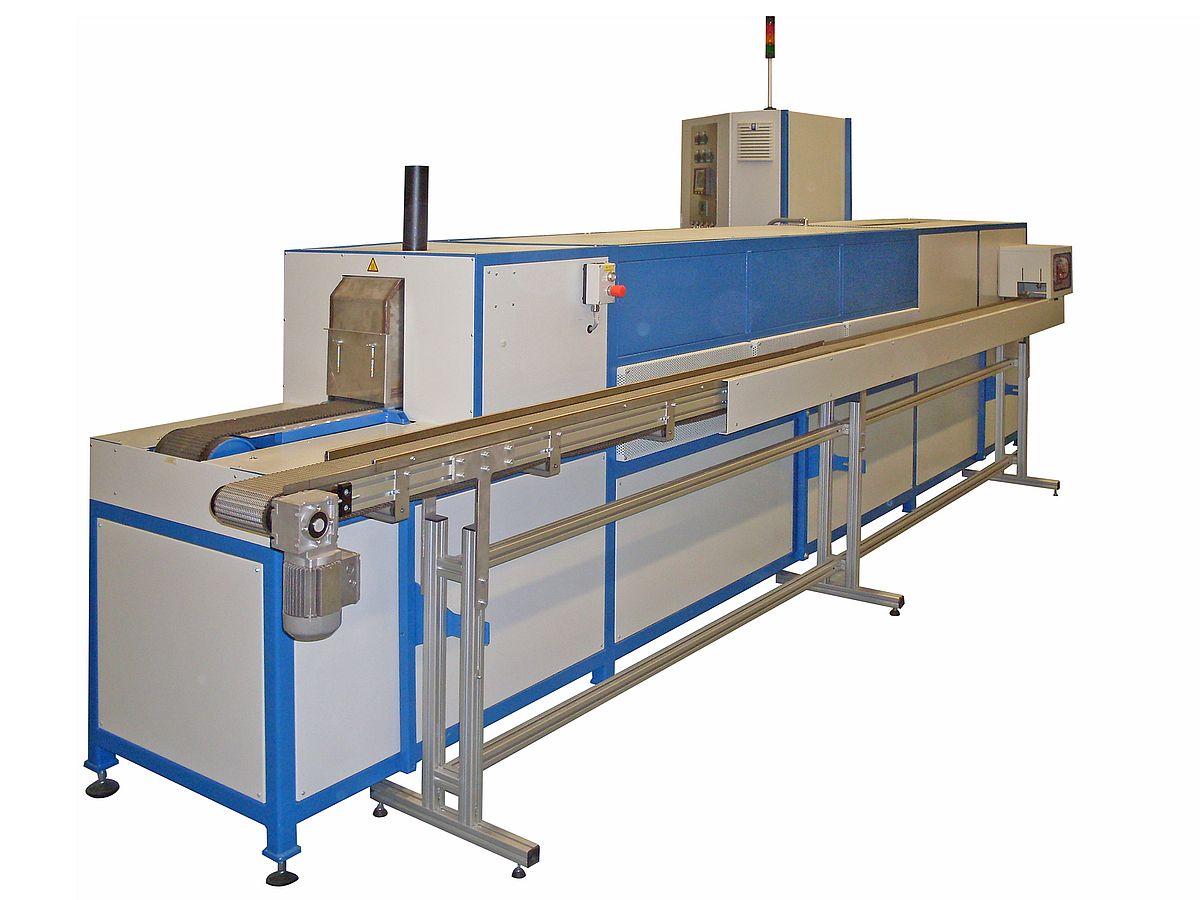

Continuous belt furnace, brick and ASW insulation, Tmax 950 °C, 30 kW, 42 l

Applications:

curing, drying

For drying and curing of thick film pastes on PZT piezo ceramics.

Further possible applications:

Drying processes and sinter resp. burning processes up to 950°C

Research and development

Product Specifications

The most important characteristics:

Compact continuous belt furnace for industry and research purposes with a useful chamber volume of app. 42 l
Tight spiral chain belt made of 1.4841 enables frequency controlled transport of 60 – 150 mm/min.
Heating system made of FeCrAl heating elements, 30 kW heating power, separated in 5 control zones
Continuous retort made of 1.4841 in heating area
Active cooling system by axial fan underneath transport belt
Exhaust system as injector principle on furnace inlet
Shifting system at the outlet of the cooling channel in connection with an accumulating conveyor belt for transport of the material to charging place
Easy operation and handling
Robust design
Flexible applications
Quality made in Germany

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options:

Various further temperature program controllers
Screen recorder
Process guiding system depending on control system
Possible linking with handling systems

Product properties

Product Line:	special product
Operation Mode:	Continous
Construction Types:	Furnace
Designs:	Belt furnace
Temperature Max (°C):	950
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air
Applications:	curing, drying
