For burn-in of water-soluble lacquers on wire bending parts.

Other possible applications are:

• Drying process up to 200°C
• Drying and curing of materials and building components without solvent release
• Research and Development

The most important characterstics

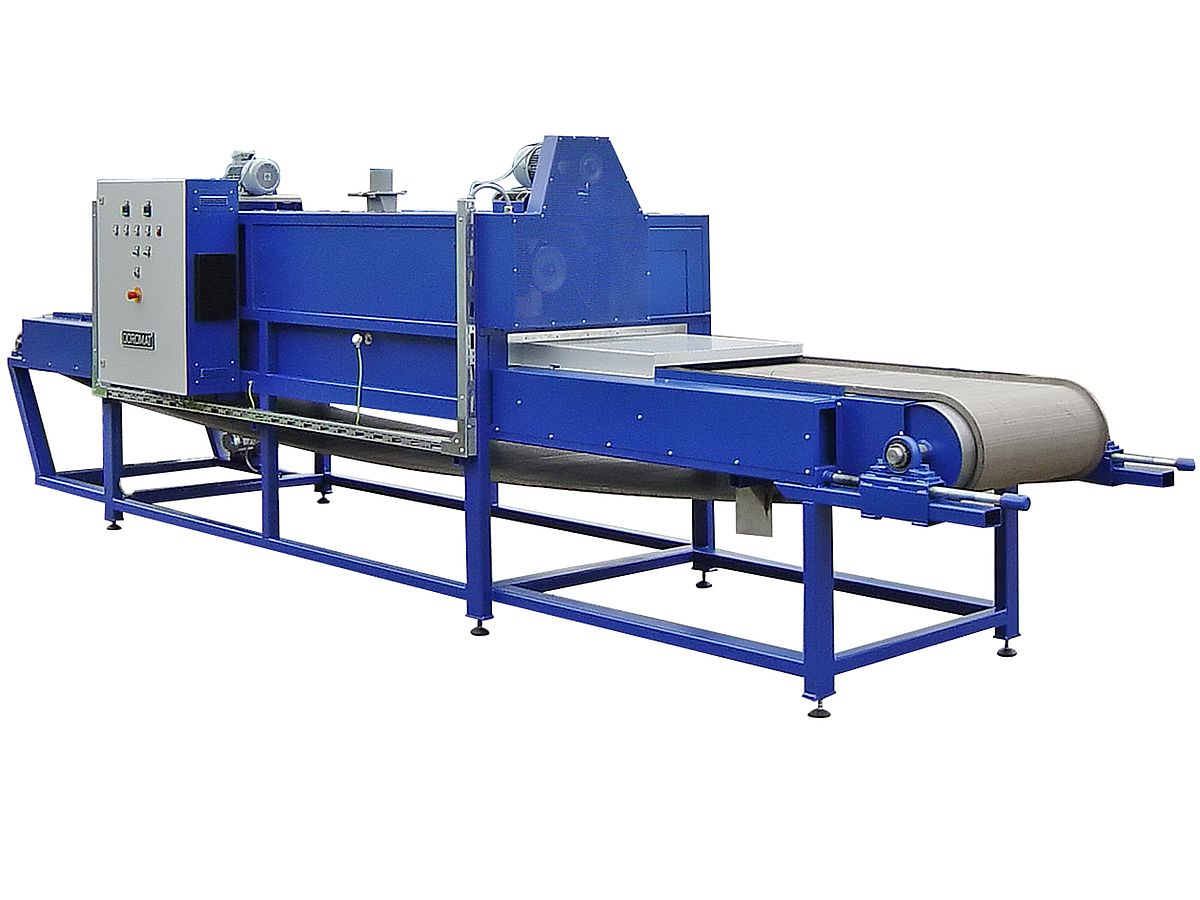

• Compact circulation air continuous belt furnace for industry purpose with a useful chamber volume of app. 240 l
• Flow rate appr. 1000 kg/ h
• The tight spiral chain belt with bent up trough edge enables a transport frequency-controlled from 0,1 – 0,5 m/min.
• The heating registers are designed with long-lasting tubular heating elements and separated into two control zones.
• The circulation air operation is carried out via two tangetial fans with a volume flow of each 160 m³/ min for effective heat transfer to the material.
• Easy operation and handling
• Robust design
• Flexible applications
• Quality made in Germany

Options

• Different further temperature program controller
• Screen recorder
• Process guiding software according to each control system

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.
