FRH-3-200/2000/1250

tmax up to 1250 °C

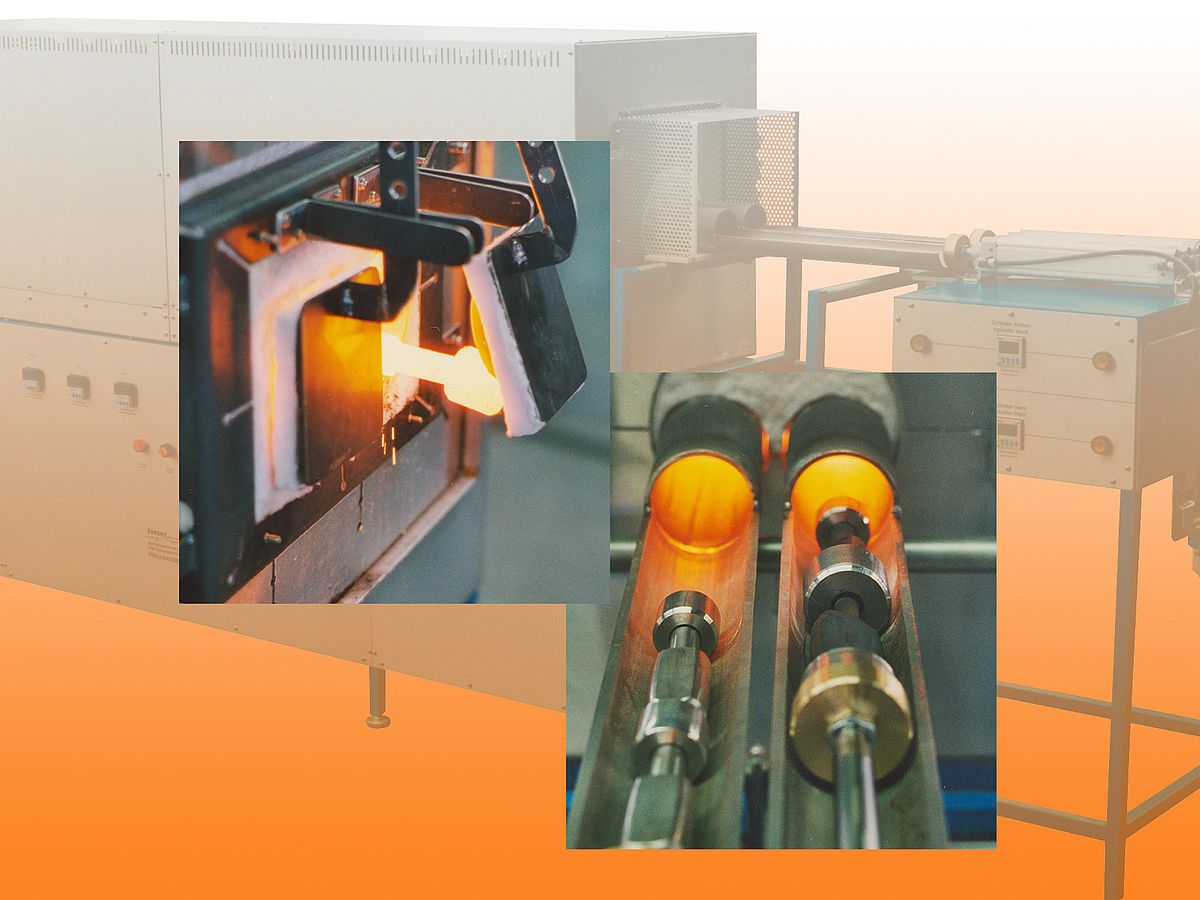

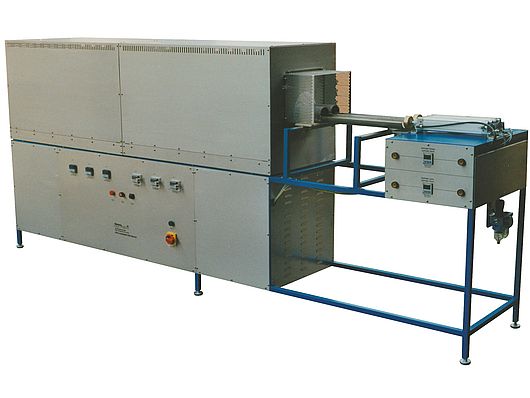

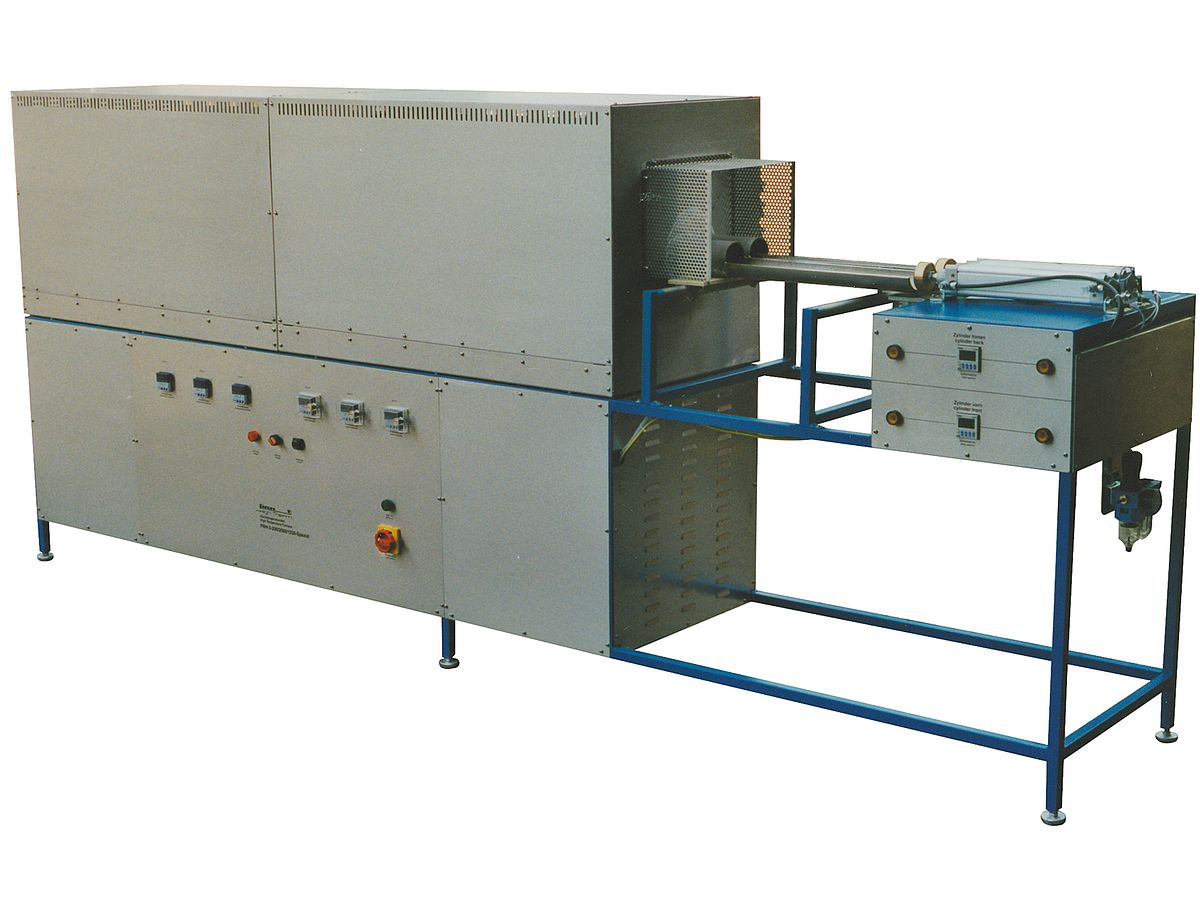

Double tube push-trough furnace, ASW insulation, Ø 73 mm, heated length 2000 mm, tmax 1250 °C, 38 kW

Applications:

annealing, forging, heat treatment, pre-heating, tempering

Pre-heating of forging parts.

Further possible applications:

Heat treatment of metallic components
Sintering of metallic powders

The most important characteristics:

3 heated zones
2000 mm heated length
2 x 73 mm tube diameter
38 kW max. heating power
Resistance heating with FeCrAl heating elements
Max. operating temperature up to 1250°C
2 insert tubes made of powder metallurgical FeCrAl-alloy
Insulation made of high quality ASW insulation boards
High energy efficiency
Charging by pneumatic pushing mechanism

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Standard options:

Various temperature controller
Gas tight design
Burning-off device with flame supervision for safe operation when using flammable and explosive gases
Gas warning system for safe operation when using flammable and explosive gases
Condensate trap
Process guiding software for complete control and documentation via PC
Cooling water recirculation cooler

Product properties

Product Line:	special product
Operation Mode:	Continous
Construction Types:	Furnace
Designs:	Push-through furnace, Tube furnace
Temperature Max (°C):	1250
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air
Applications:	annealing, forging, heat treatment, pre-heating, tempering
