FRH-4-200/2000/1250

tmax up to 1300 °C

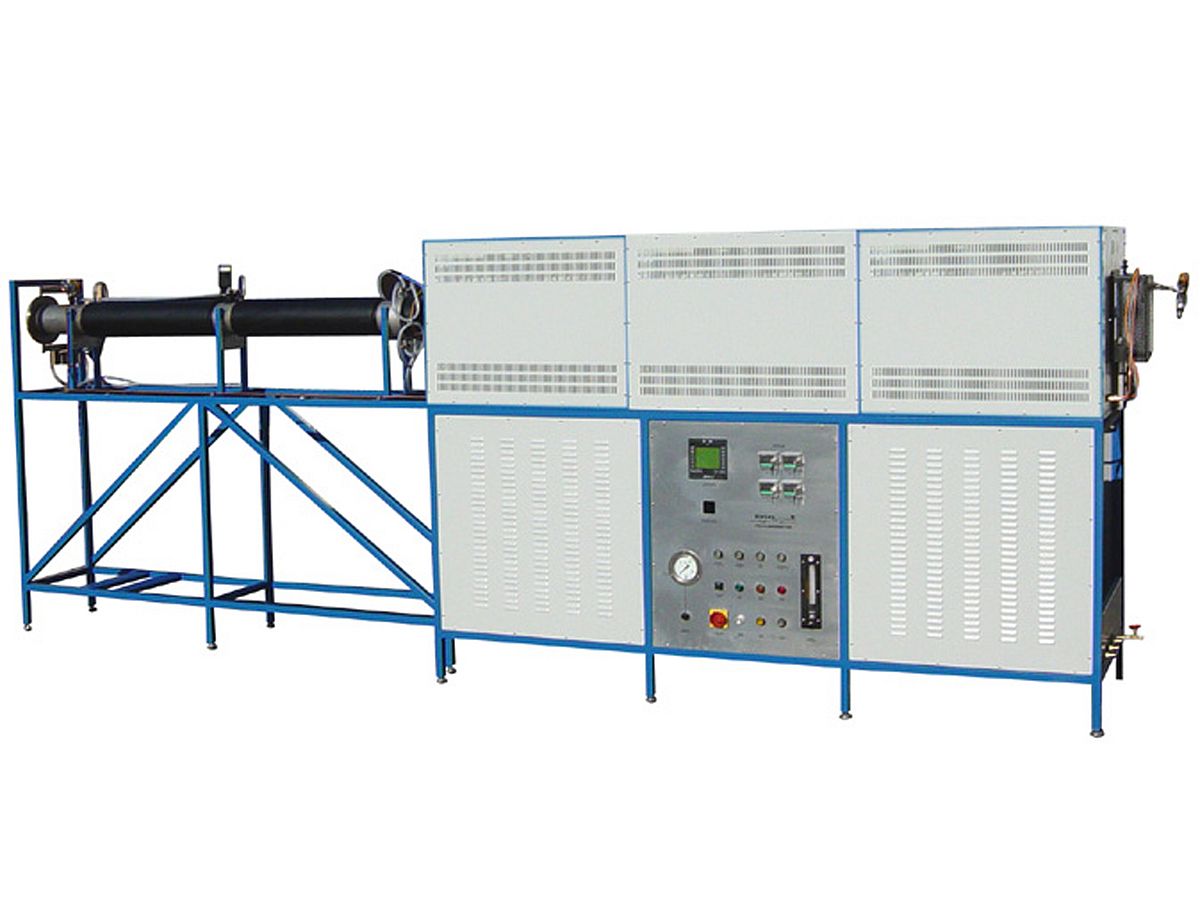

Tube furnace, ASW insulation, gas tight, Ø 134 mm, heated length 2000 mm, Tmax 1300 °C, 38 kW

Applications:

annealing, debinding, dewaxing, heat treatment, tempering

Heat treatment of metallic parts under protective gas atmosphere.

Further possible applications:

Research and development
Debinding, sintering of metallic powders

The most important characteristics:

4 heated zones
2000 mm heated length
2000 mm cooled length
134 mm tube diameter
38 kW max. heating power
Gas tight
Resistance heated with FeCrAl heating elements
Max. operating temperature up to 1300 °C
Insert tube made of powder metallurgical FeCrAl-alloy
Insulation made of high quality ASW insulation boards
High energy efficiency
Gas feeding device for 3 gases (H2, Ar, N2)
Integrated indirect product water cooling
Extremely short heating up and cooling down cycles

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Standard options:

Various temperature controller
Burning-off device with flame supervision for safe operation when using flammable and explosive gases
Gas warning system for safe operation when using flammable and explosive gases
Condensate trap
Process guiding software for complete control and documentation via PC
Cooling water recirculation cooler

Product properties

Product Line:	special product
Operation Mode:	Continous
Construction Types:	Furnace
Designs:	Push-through furnace, Tube furnace
Temperature Max (°C):	1300
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Controlled gas atmosphere
Applications:	annealing, debinding, dewaxing, heat treatment, tempering
