SAZ-6-500/150/3500/1350

tmax up to 1350 °C

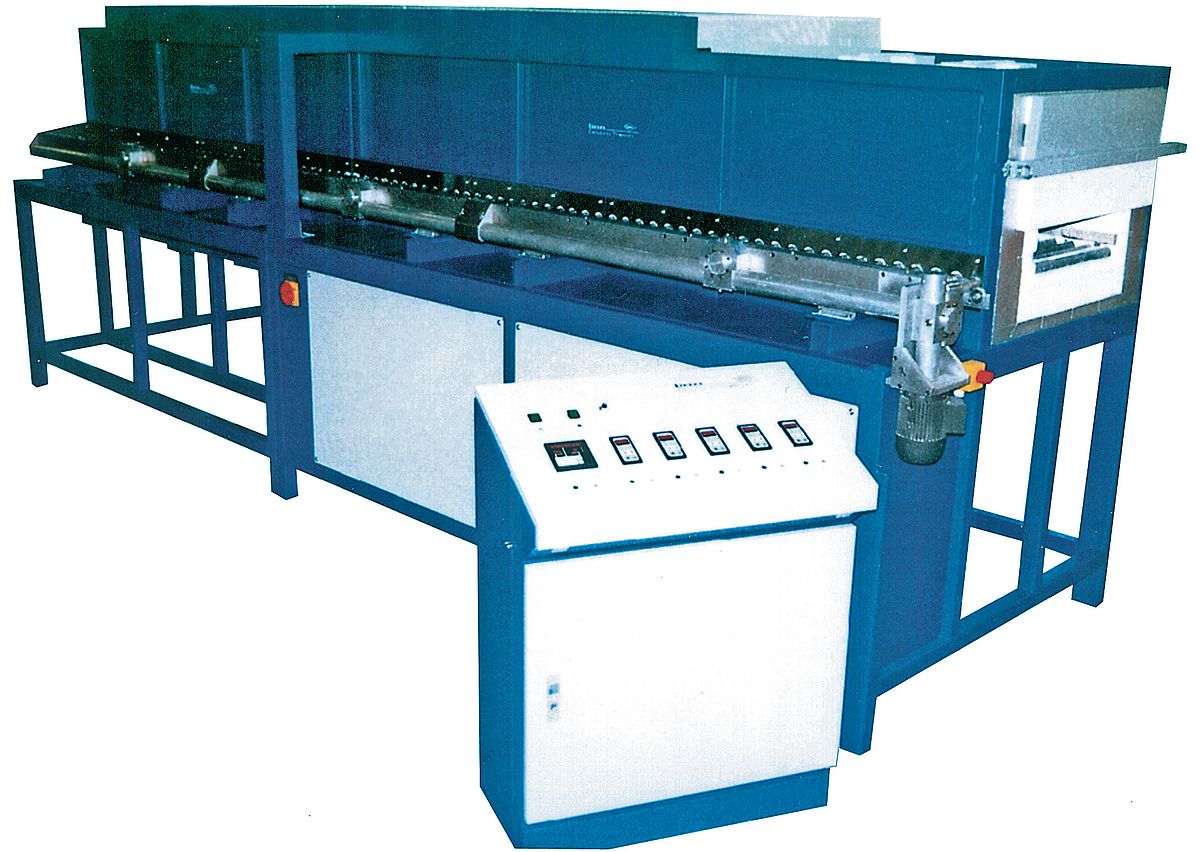

Roller hearth continuous furnace, brick and alumo-silicat insulation, Tmax 1350 °C, 48 kW, 260 l

Applications:

annealing, curing, firing, heat treatment

For sintering and burning of superabrasive products on transport pallets.

Further possible applications:

Sintering and heat treatment

The most important characteristics:

Compact roller hearth furnace for industry with a useful chamber volume of app. 260 l (w 500 X d 150 X d 3500)
Transport rolls made of recrystallized silicon carbide (RSiC), both-side bearing
Flexible transport speed from 35 to 120 mm/min
Roll drive via 8 mm chain (both sides) and central shaft, via screws
Transport of the goods on transport pallets with a throughput of app. 130 kg/h
Six zone, resistance heated furnace with free radiating special FeCrAl heating elements with a total heating power of 48 kW
Coupling with upstream or downstream process furnaces of customer by free chain wheels on inlet and outlet
Robust design
Quality made in Germany

We make it possible:

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options:

Various further temperature program controller
Screen recorder
Process guiding software depending on control system

Product properties

Product Line:	special product
Operation Mode:	Continous
Construction Types:	Furnace
Designs:	Roller hearth kiln
Temperature Max (°C):	1350
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air
Applications:	annealing, curing, firing, heat treatment
