MKE-model

tmax up to 1200 °C

Microwave chamber furnace, high temperature, 2.45 GHz, 3.0 l, Tmax 1200 °C

Applications:

ashing, calcination, melting, sintering

The Most important characteristics

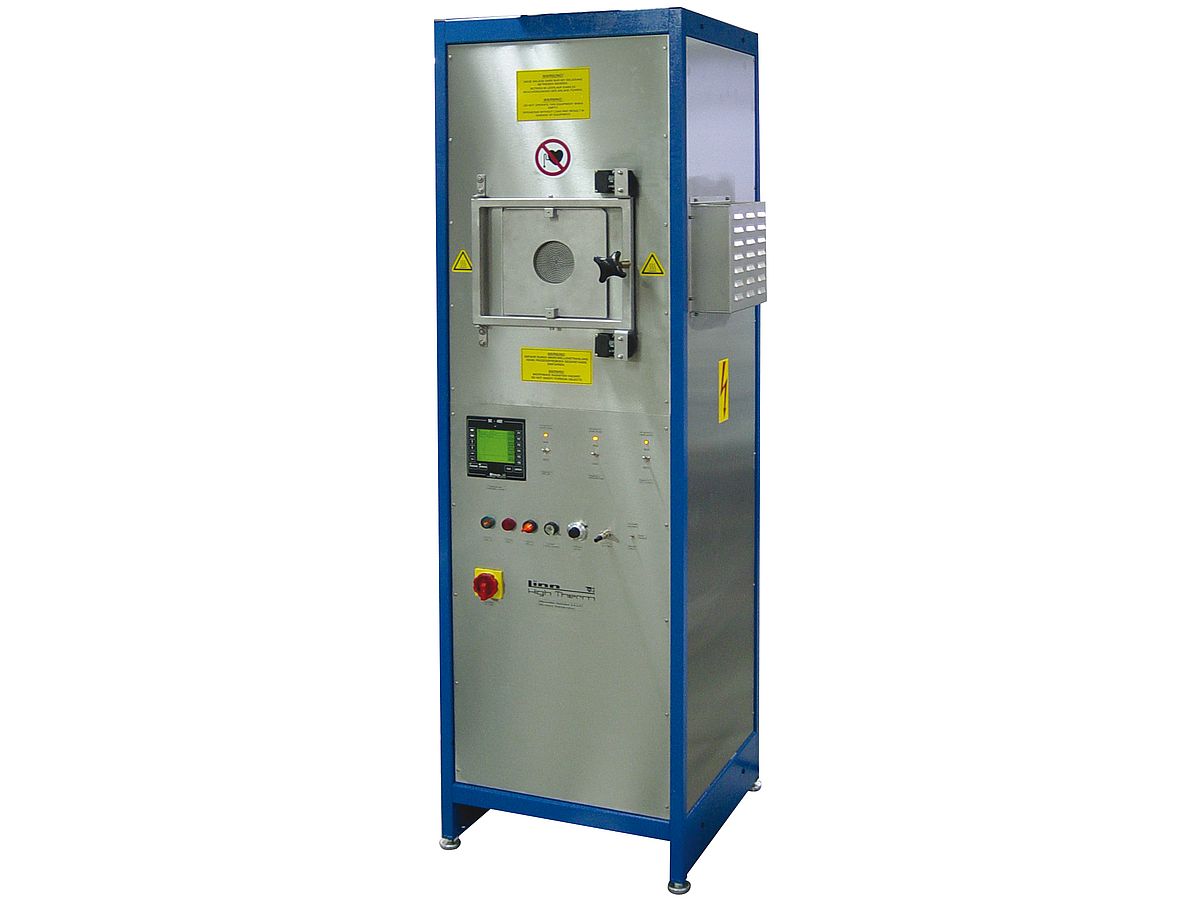

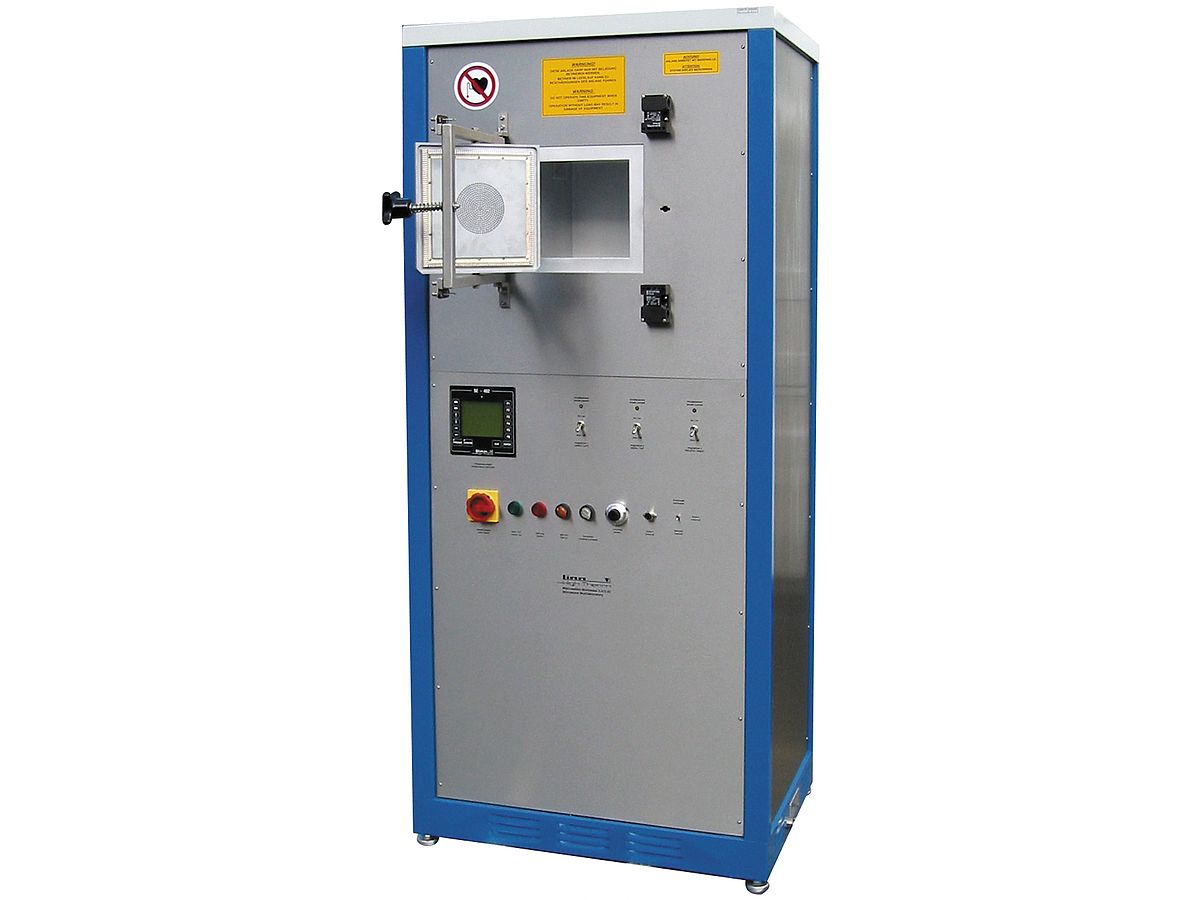

Microwave laboratory furnace MKE
Three air cooled 900 Watt microwave generators
Tmax: 600 °C (optional to 1200°C)
Stepless adjustable power from 15-100 %
Special design of microwave applicators and coupling type
Minimal reflection of microwave power in direction to generator
Homogenous power distribution in multimode chamber
Extensive safety devices
Easy to handle
High quality made in Germany

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Options

High temperature pyrometer
Service cable
Program terminal
PC-Universal Interface (USB) KUI
Multi Functional Unit
Serial Interface
Process Guiding Software ECS 2000
Interface converter
Carryable and/or stationary microwave measuring device
Other voltags or frequency 60 Hz
Insulation house for higher operating temperatures (Tmax=1200°C)

Product Specifications

Size

Model	MKE-2,7
Outside dimensions furnace (W x D x H)	800 x 600 x 2000
Weight (kg)	180
Power supply (V/Hz/Ph)	230 / 50 / 1
Microwave power (kW)	2,7
Useful dimensions (W x D x H)	150 x 150 x 150
Chamber volume (l)	1 - 3
Operating frequency(GHz)	2,45
Number of magnetrons	3 (je 0,9 kW)

Technical Data

The universal microwave laboratory furnace, which is placed in a shaply norm housing, characterizes itself through special design of microwave applicators and coupling type of microwaves. Consequently it prevail favourable working conditions for the three 900 W microwave generators f.ex. minimal reflection of microwave power in direction to generator. The power is stepless adjustable over potentiometer from 15-100%.

Further characteristics are:

3 air cooled 0,9 kW magnetrons with frequency 2,45 GHz
Homogenous power distribution in the multimode chamber
Increase of homogenity of temperature distribution in the material through a Al2O3- or Teflon-rotary disc with drive motor and 100 mm diameter
External control of power (0 to 10 V)
Extensive safety devices
Viewing window in the door
Effective microwave damping component which prevents escaping of stray radiation and leakage radiation (≤ 5 mW/cm2).

Product properties

Product Line:	type series
Operation Mode:	Batch
Construction Types:	Dryer, Furnace
Designs:	Chamber furnace, Laboratory furnace
Temperature Max (°C):	1200
Heatings:	electrical
Heatingmethods:	microwave/dielectric
Atmospheres:	Air, Controlled gas atmosphere, Vacuum
Applications:	ashing, calcination, melting, sintering
