KS-S-model

tmax up to 1200 °C

Chamber furnace, brick and ASW insulation, gas tight muffle, Tmax 1200 °C, 69 - 462 l

Applications:

annealing, borating, brazing, bright annealing, calcination, carburization, debinding, dewaxing, heat treatment, nitriding, nitrocarburizing, pyrolysis, reduction, sintering, soldering, stress-relieving, surface coating, tempering, thermal recycling

The most important characteristics

Resistance heated by metal alloy heaters
Chamber furnace
Gastight muffle made from heat resistance steel/nickel alloy (inconel)
Maximal operating temperature 1200°
Insulation by lightweight refractory bricks and micro porous boards
High energy efficiency
Low outside temperature
Very wide range of options
High quality – made in Germany
Easy to handle

We make it possible

Linn High Therm is specialized in adapting its products to customer’s requirements. Please let us know if you need any modifications apart from our standard offer. We will do everything to satisfy your wishes.

Standard options

Various temperature controllers
Inconel muffle with increased temperature up to 1200 °C.
Up to 3 heating zones for uniform temperature distribution.
Forced gas circulation for better heat transfer and uniformity in low temperature range.
Fast cooling device for fast cycles and high productivity.
Gas feeding device for save operation when using burnable and explosive gases according to ATEX rules
Burning-off device with flame supervision for save operation when using burnable and explosive gases according to ATEX rules
Safety package for save operation when using burnable and explosive gases according to ATEX rules
Gas warning system for save operation when using burnable and explosive gases according to ATEX rules
Condensate trap to allow “dirty” processes like pyrolysis and debinding
Process guiding software for complete control and documentation via PC

Other options

Gas recooling unit
Gas mixing stations
Reinforced gas circulation
Fiber insulation
Multizone heating
Bubbler
Travelling thermocouple
Charging devices

Product Specifications

Sizes*

model	liters	T. max in °C	inside dimensions mm (wxdxh)	kW
KS-80-S	69	1050/1200**	340 x 600 x 340	15,0

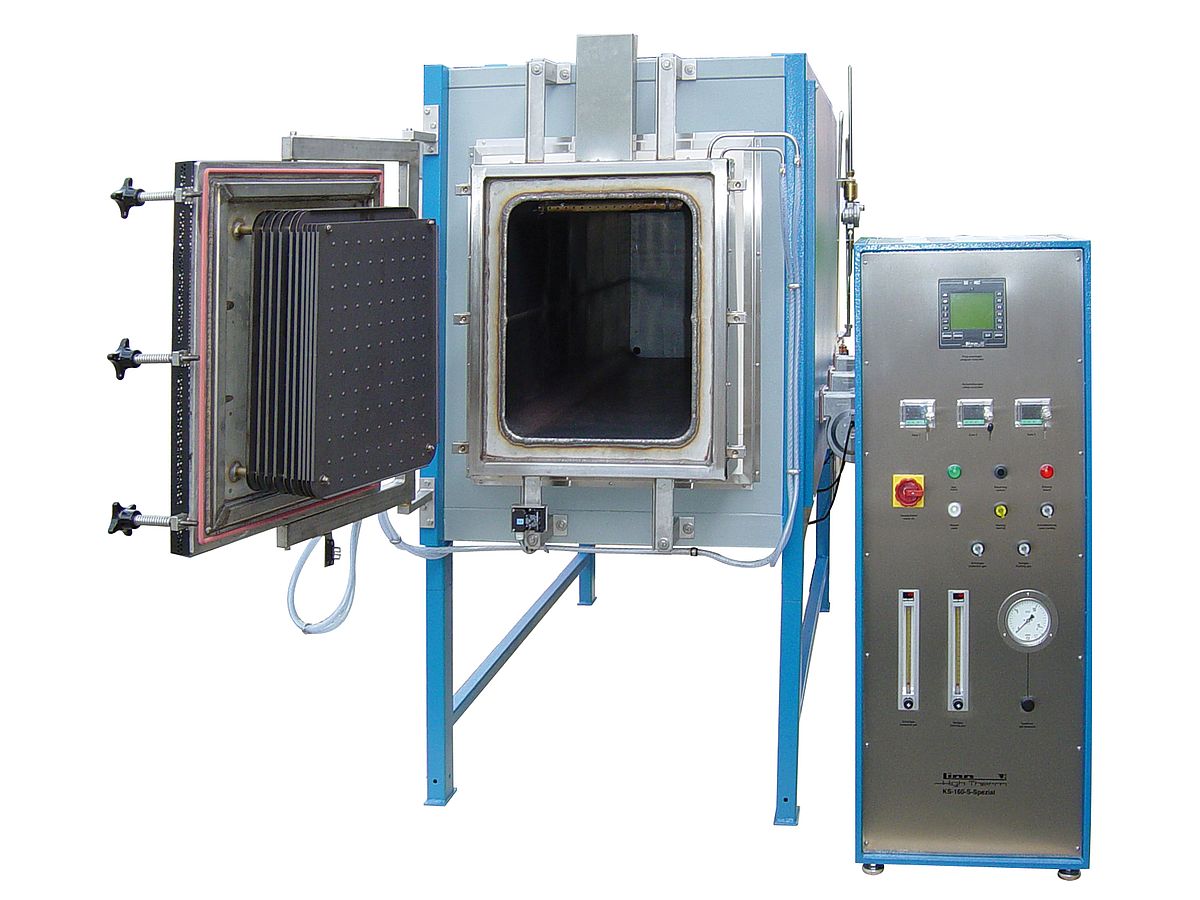

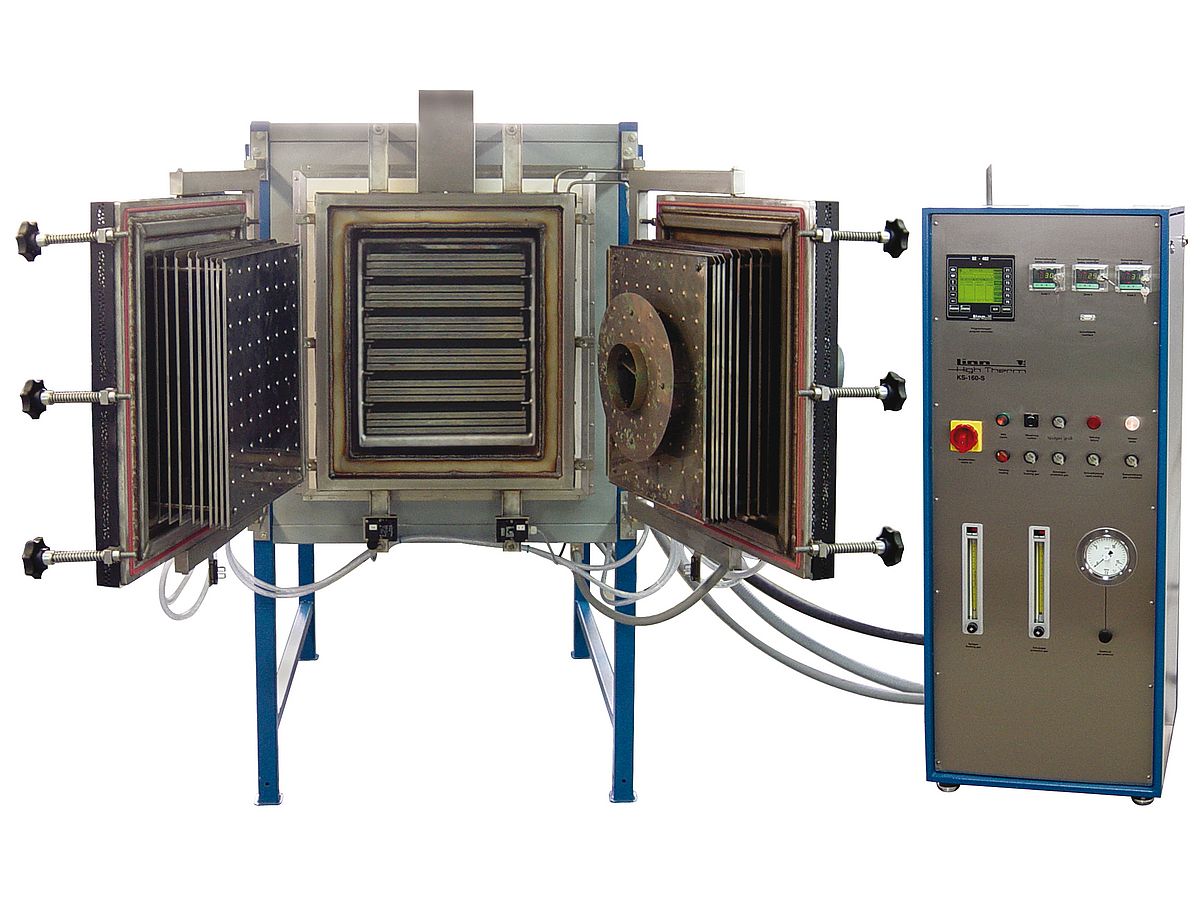

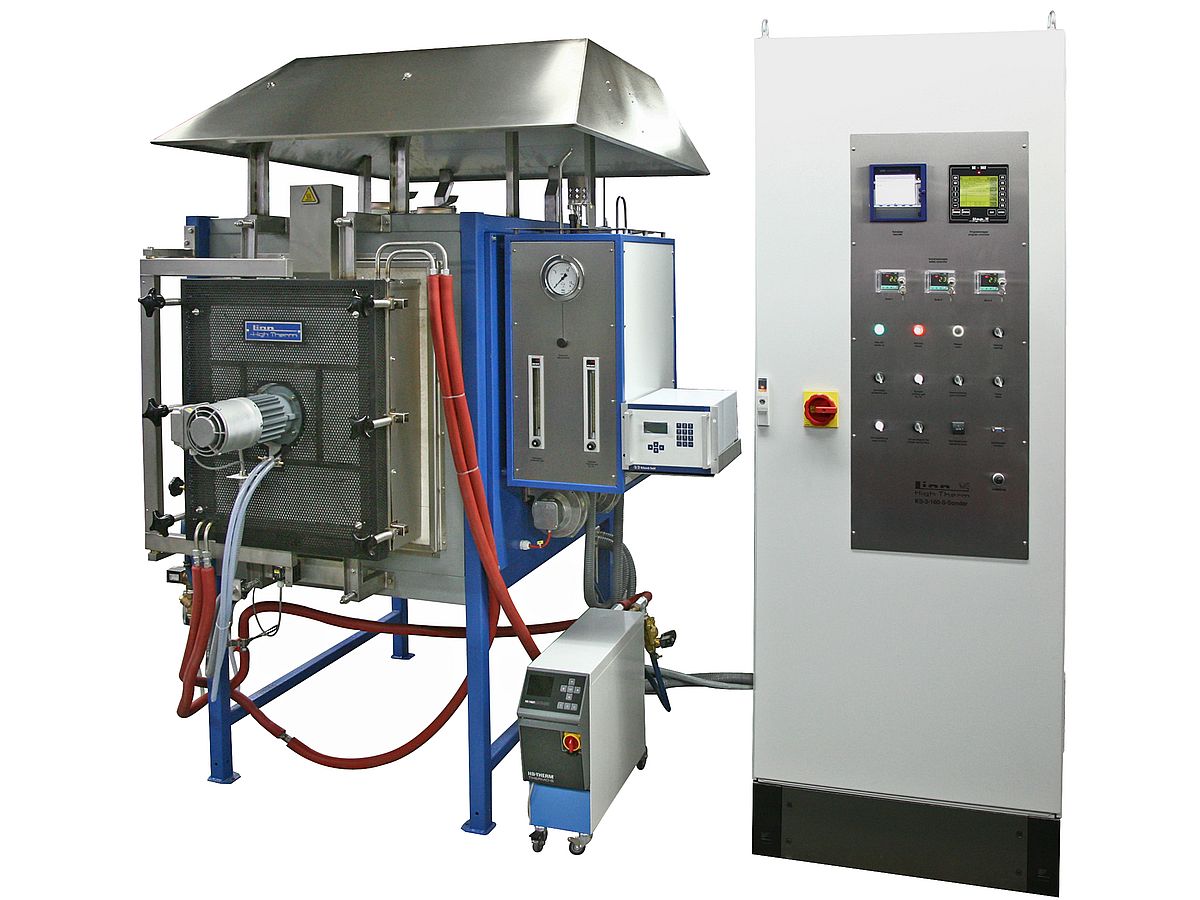

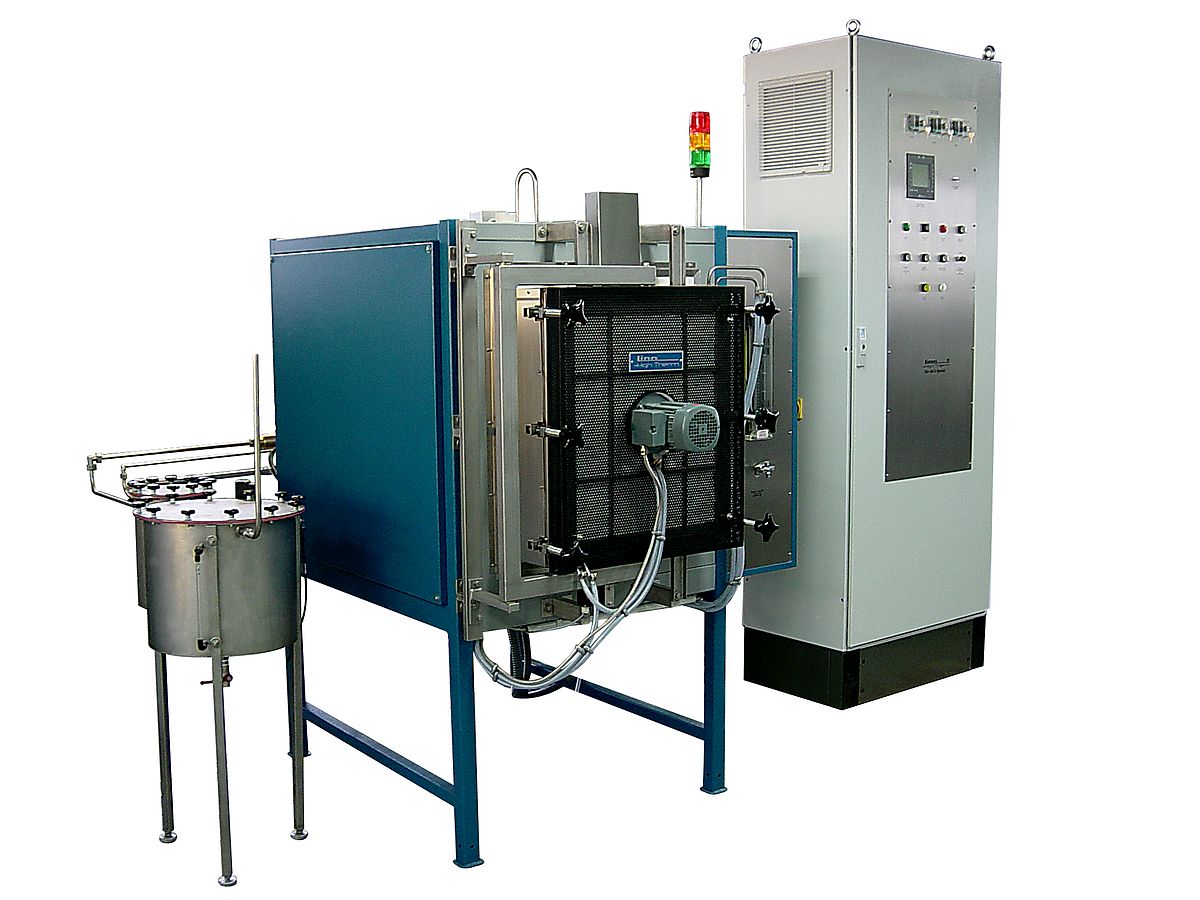

KS-160-S	166	1050/1200**	440 x 700 x 540	21,0
KS-240-S	245	1050/1200**	490 x 800 x 640	36,0

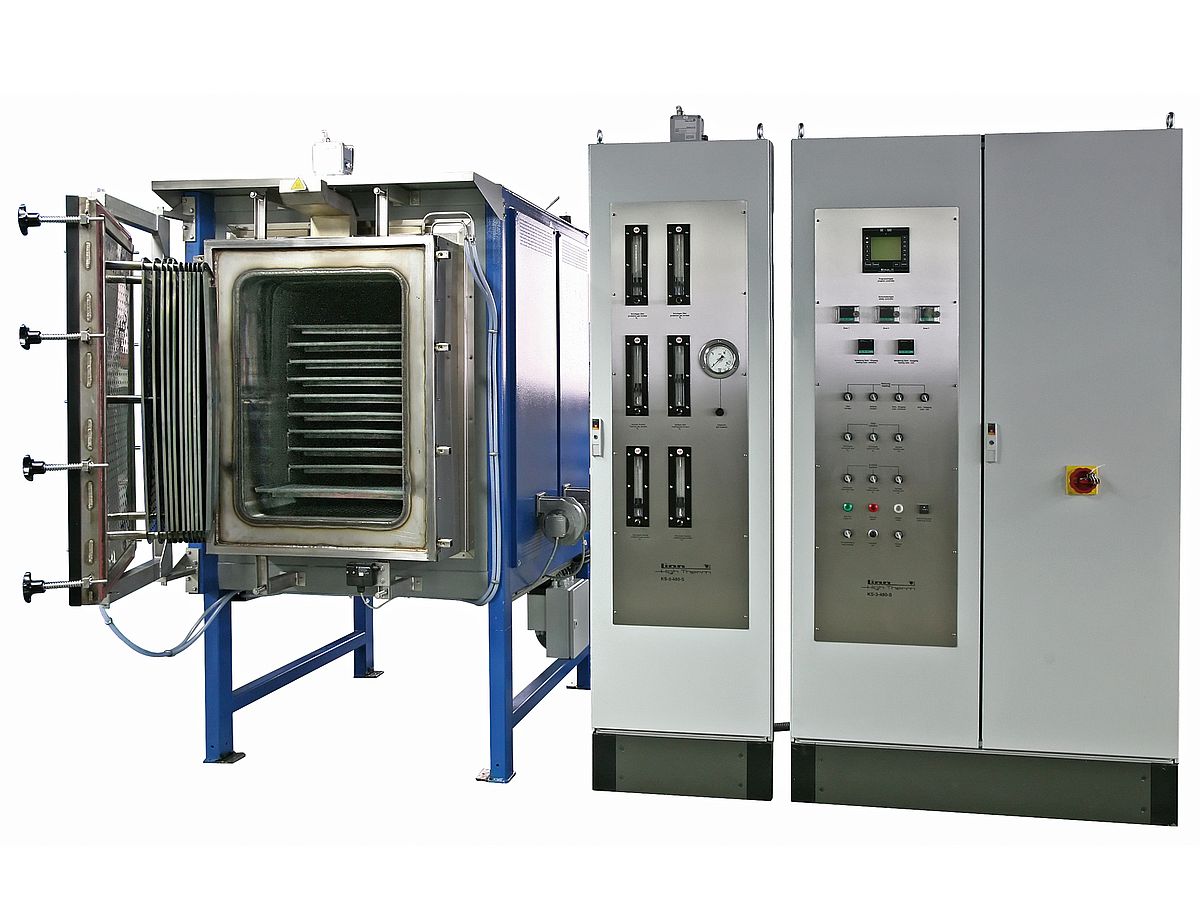

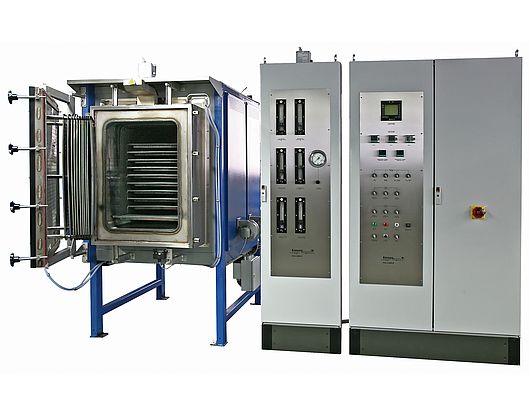

KS-480-S	462	1050/1200**	580 x 950 x 840	51,0

*Customized KS-S can be made up to 3 m³

**1200°C optionally + increased heating power

Technical details

Furnace housing

Furnace housing as well as housing of separate switch box consist of a lightweight sheet steel construction. As protection against corrosion they are coated with a special lacquer and the colors blue/white give the whole furnace a nice appearance.

Insulation

Ceiling, both side walls, rear wall as well as the bottom are manufactured of lightweight refractory bricks. Due to the back ventilated brickwork in combination with modern microporous insulation material, a high thermal capacity at low energy consumption and low outside temperature is ensured.

Heating

The heating is effected by free radiating Kanthal A1 or APM heating spirals (hairpins) in groves of the brickwork of both side walls, bottom and door.

Protective gastight muffle insert

All heat coated parts of the muffle insert are made of heat resistant material or made of stainless steel and are firmly fixed on the front side of the furnace by supporting angles. Furthermore, the muffle insert is movable in the furnace chamber so that it can expand to the back side. Due to a stainless steel chimney installed between muffle cooling frame and outer housing, an air stream develops which cools the muffle already before the cooling frame. This furnace can be operated with insert muffle only.

The door is designed as a swivelling door plug with radiation sheets. On the front side of the muffle insert, a stainless steel rectangular tube frame is welded on. This frame is water cooled and serves as sealing flange. The water cooled swivelling door is equipped with a special silicone sealing.

Gas inlet and gas outlet are led out on the furnace rear wall, water supply and discharge pipes are led to backside of the furnace sideways.

Control system

The control system is installed in a separate switching part which is connected with the furnace via flexible lines. The furnace will be supplied with the following components:

1 temperature controller G 400

1 safety controller for switch-off of over temperature

1 load relay

2 thermocouples located in the muffle insert (control thermocouple) and between muffle insert and furnace heating (safety thermocouple)

Product properties

Product Line:	type series
Operation Mode:	Batch
Construction Types:	Furnace
Designs:	Chamber furnace
Temperature Max (°C):	1200
Heatings:	electrical
Heatingmethods:	resistance
Atmospheres:	Air, Controlled gas atmosphere
Applications:	annealing, borating, brazing, bright annealing, calcination, carburization, debinding, dewaxing, heat treatment, nitriding, nitrocarburizing, pyrolysis, reduction, sintering, soldering, stress-relieving, surface coating, tempering, thermal recycling
